VacuMaster Eco Vacuum Lifter
Vacuum handling without an external power supply

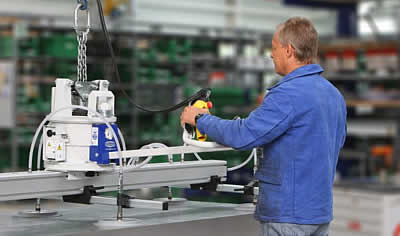

The VacuMaster Eco is a self-priming vacuum lifting device, that uses the weight of the workpiece and the weight of the lifter, to generate its own vacuum capable of lifting the workpiece with safety.
To lift a load, a simple procedure of lowering the VacuMaster Eco on to the workpiece and allowing the lifting chain to go slack is all that is required. An internal valve is automatically switched and the lifter is then raised again to lift the workpiece.
Smooth and air-tight workpieces can be safely handled, with a battery powered audible safety device providing feedback to the operator
Features Include
The VacuMaster Eco is a self-priming vacuum lifting device, that uses the weight of the workpiece and the weight of the lifter, to generate its own vacuum capable of lifting the workpiece with safety.
To lift a load, a simple procedure of lowering the VacuMaster Eco on to the workpiece and allowing the lifting chain to go slack is all that is required. An internal valve is automatically switched and the lifter is then raised again to lift the workpiece.
Smooth and air-tight workpieces can be safely handled, with a battery powered audible safety device providing feedback to the operator
Features Include
- Safe handling of smooth, air-tight workpieces without an external power supply
- Safe operation thanks to a battery powered warning device with battery test function
| Type | Maximum load horiz/vert [kg] | Workpiece format | Handling of the load |
Number of suction pads | Overall height [mm] | Intrinsic weight [kg] | |
|---|---|---|---|---|---|---|---|
| Maximum [mm] | Minimum [mm] | ||||||
| VacuMaster Eco 75 | 75 / 0 | 4000 x 2000 | 220 x 220 | horizontal | 1 | 368 – 873 | 8 |
| VacuMaster Eco 250 | 250 / 0 | 3000 x 1500 | 350 x 350 | horizontal | 1, 2, 4, 6 | 570 – 825 | 25 – 68 |
| VacuMaster Eco 500 | 500 / 0 | 4000 x 2000 | 480 x 480 | horizontal | 1, 4, 6, 8 | 850 – 1120 | 82 – 131 |
| VacuMaster Eco 750 | 750 / 0 | 4000 x 2000 | 360 x 360 | horizontal | 4, 6, 8 | 1050 – 1126 | 109 – 131 |
| VacuMaster Eco 1000 | 1000 / 0 | 4000 x 2000 | 625 x 625 | horizontal | 1, 4, 8 | 980 – 1390 | 138 – 309 |
