​Grade 80 Alloy Chain Fittings

Download page as PDF
File Size: 870 kb
File Type: pdf
Download File
Grade 80 Master Link
​
SD Type Head-Rings are designed to cater for single leg and double leg Chain Slings or Wire Rope Sling applications.
  • Marked with single and double Chain sizes, product ID, grade with manufacture quality mark and Austlift branded.
  • Manufactured from G80 alloy steel, safety factor 4 to 1 for ChainSling , 5 to 1 for Wire Rope Sling.
  • Test Certificates available upon request.
  • Conforms to AS3776.
CODE CHAIN SIZE WLL Wt. DIMENSIONS
1 leg 2 leg B C D
mm mm tonne kg mm mm mm
101006 6 1.25 0.23 60 100 11
101008 8 6 2.5 0.44 70 120 14
101010 10 8 4 0.76 80 140 17
101013 13 10 7.5 1.48 95 160 22
101016 16 13 15 2.25 110 190 25
101022 22 20 25 7.04 150 250 38
101026 26 22 30 7.86 150 250 40
101032 32 26 50 15.2 200 300 50
101036 36 32 63 20.54 200 350 55
G80 Master Link Multi
​
MD Type Multi Head Rings are designed as a large ring with two intermediate links to cater for two three and four leg Chain Sling or Wire Rope Sling applications.
  • Marked with Chain size, product ID, grade with manufacture quality mark.
  • Manufactured from G80 alloy steel, safety factor 4 to 1 for Chain Sling , 5 to 1 for Wire Rope Sling.
  • Test Certifi cates available upon request.
  • Conforms to AS3776.
CODE SIZE WLL Wt. DIMENSIONS
B B1 C1 C2 D D1
4:1 5:1 kg mm mm mm mm mm mm
101206 6 3.2 2.6 1.7 90 60 160 100 17 14
101208 7, 8 5 4 1.9 90 60 160 100 20 14
101210 10 8 6.4 3.3 120 70 220 150 24 17
101213 13 17 13.6 6.7 140 90 270 160 28 25
101222 22 33 26.4 26.6 180 155 340 285 45 36
101216 16 20 16 9.3 140 100 270 180 32 27
101220 18, 20 26 20.8 19.1 160 140 300 270 40 32
Grade 80 OL Type Omega Links
​
Austlift OL Type Omega Links are commonly used in conjunction with recessed Head Rings and Chain for Chain Slings.
They are also a popular fitting for variable type slings.
  • Marked with Chain size, grade and Austlift branded with manufacture quality mark.
  • Made from G80 alloy steel with a safety factor of 4 to 1.
  • Test Certificates available upon request. Conforms to AS3776.
Code WWL   Dimensions
  TONNE kg A
mm		 B
mm		 C
mm		 D
mm		 W
mm
104106 1.12 0.12 8 20.5 25 12 41
104108 2 0.22 10 23.5 35 16 52
104110 3.15 0.36 12 31.5 40.5 17 62
104113 5.3 0.71 15 41 54 20 81
104116 8 1.3 19 49.5 64 26 99
Grade 80 Shortening Clutch, Clevis
​
Austlift CC Type Shortening Clutch have the advantage of shortening a Chain Sling without loss of the working load limit of the sling.
The Clevis allows easy connection to Chain.
Not recommended for use as a bottom fitting of sling for back-hooking and reeving applications.
  • Marked with Chain size, product ID, grade with manufacture
  • Quality mark and Austlift branded.
  • Manufactured from G80 alloy steel with a safety factor of 4 to 1
  • Conforms to AS 3776, Test Certificates available upon request.
Code Chain Size WLL   Dimensions
  mm Tonne kg A
mm		 B
mm		 P
mm		 L
mm		 H
mm		 S
mm
102106 6 1.1 0.17 8 44 7.5 7.5 10.3 12
102108 7,8 2 0.41 10.5 61.7 9.5 9.5 14 17
102110 10 3.2 0.97 12.4 92 13 13 18.4 28
102113 13 5.3 2 16 115 16.5 16.5 22.7 34.5
102116 16 8 3.32 19.5 143 21 21 28.5 40
102120 18,20 12.5 6.2 23 152 23.5 23.5 33.6 46
102122 22 15 8.5 26 195 25.5 25.5 39 57.5
Grade 80 Shortening Clutch, Locking Clevis
​
Austlift SC Type Lockable Clutches have the advantage of shortening a Chain Sling without loss of the working load limit.
The clevis allows easy connection to Chain with the added safety of a Chain locking devise to prevent the Chain from dislodging from the hook.
  • Marked with Chain size, product ID, grade with manufacture
  • Quality mark and Austlift branded
  • Manufactured from G80 alloy steel with a safety factor of 4 to 1
  • Conforms to AS3776, Test Certificates available upon request.
Code Chain Size WLL   Dimensions
  mm Tonne kg A
mm		 B
mm		 E
mm		 M
mm		 N
mm		 H
mm		 L
mm
102140 10 3.2 0.99 8 44.5 14 56 12 58 121

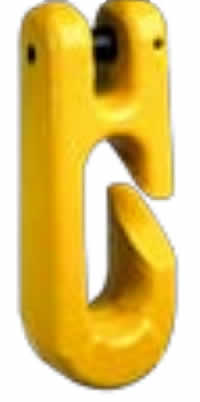

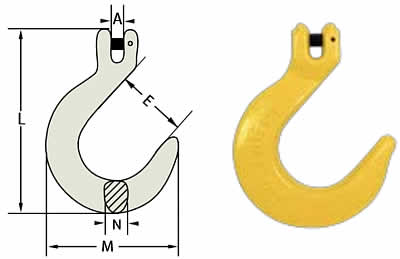

Clutch Choker, Clevis Type
​
Austlift CC Type Clevis Choker Hooks are a special purpose hook suitable for choke hitch applications.
The narrow throat opening prevents the chain from being dislodged
The clevis allows easy connection to Chain.
  • Marked with Chain size, product ID, grade with manufacture
  • Quality mark and Austlift branded
  • Manufactured from G80 alloy steel with a safety factor of 4 to 1
  • Conforms to AS 3776
  • Test Certificates available upon request
Code Chain Size WLL   Dimensions
  mm Tonne kg A
mm		 B
mm		 H
mm		 M
mm		 N
mm		 E
mm		 L
mm
102420 8 2 0.68 10.5 41 60 46.5 32 16 123

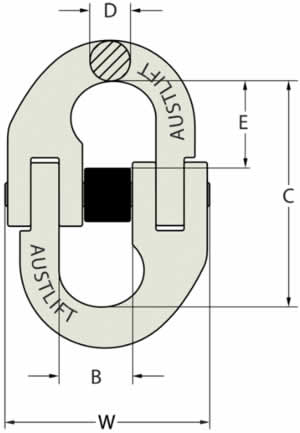

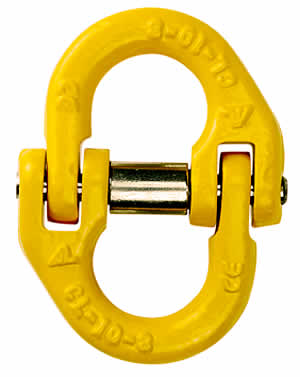

Grade 80 Chain Connectors
​
CL Type Connecting Links are commonly used to connect Head Rings, Chain, Hooks and other lifting components for Chain Slings and a wide variety of other uses.
  • Marked with Chain size, grade and Austlift branded with manufacture quality mark.
  • Made from G80 alloy steel with a safety factor of 4 to 1.
  • Test Certificates available upon request.
  • Conforms to AS3776.
CODE CHAIN SIZE WLL Wt. DIMENSIONS
B C D E W
mm tonne kg mm mm mm mm mm
101806 6 1.12 0.08 15 42 7 18 43
101808 7, 8 2 0.146 18 60.5 8.5 23.5 55
101810 10 3.15 0.3 25 68 11.5 27 69
101813 13 5.3 0.7 29 87 15 32 83
101820 18, 20 12.5 2.1 41 121.5 24 52.5 117
101822 22 15 3.2 48 141.5 26 62 143
101826 26 21.2 4.5 57.5 158 30 64 163
101832 32 31.5 9 67 205 37 86 199

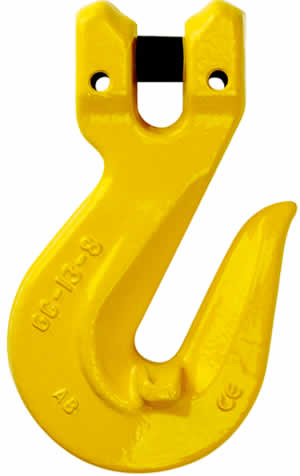

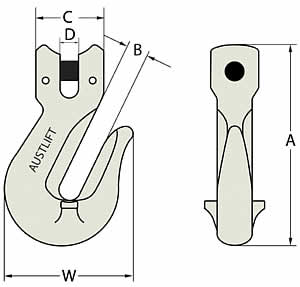

Grade 80 Grab Hook (Clevis Type)
​
GC Type Clevis grab hook provides the flexibility to shorten Chain Slings and can be used for back-hooking.
Grab Hooks come with supporting lugs to allow no reduction of the working load limit. The Clevis is designed for easy connection of Chain.
  • Marked with Chain size, product ID, grade with manufacture quality mark and Austlift branded.
  • Made from G80 alloy steel with safety factor of 4 to 1
  • Test Certificates available upon request.
  • Conforms to AS3776.
CODE CHAIN SIZE WLL Wt. DIMENSIONS
A B C D W
mm tonne kg mm mm mm mm mm
101906 6 1.12 0.28 78 8 32 7.5 41
101908 7, 8 2 0.3 108 11 36 9 57
101916 16 8 3.45 204 20 70 17.5 109
101920 18, 20 12.5 5.3 243 23 80 23 130
101922 22 15 7.8 280 26 98 25.5 151
101926 26 21.2 14.5 309 30 110 30 175
101910 10 3.15 0.95 127 13 46 12 70
101913 13 5.3 1.97 163 16 59 15 89

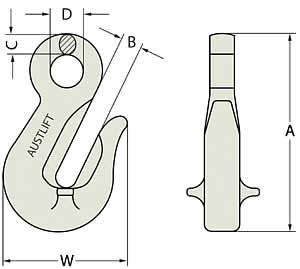

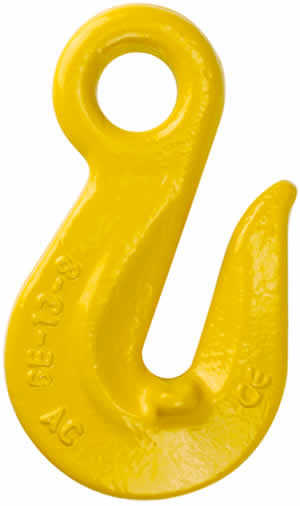

Grade 80 Grab Hook (Eye Type)
​
GE Type Eye grab hook provides the flexibility to shorten Chain Sling and can be used for back-hooking. Austlift Grab Hooks come with supporting lugs to allow no reduction of the working load limit. The eye is designed for easy connection of Chain Connector.
  • Marked with Chain size, product ID, grade with manufacture quality mark and Austlift branded
  • Made from G80 alloy steel with safety factor of 4 to 1
  • Test Certificates available upon request.
  • Conforms to AS3776.
CODE CHAIN SIZE WLL Wt. DIMENSIONS
A B C D W
mm tonne kg mm mm mm mm mm
102006 6 1.12 0.25 76.5 8 8 13 45
102008 7, 8 2 0.4 106 11 9.5 16 63
102010 10 3.15 0.6 126 13 12 20 79
102013 13 5.3 1.2 156 16 15 25 100
102016 16 8 2.7 193 20 19 28.5 122
102020 18, 20 12.5 4.3 226 25 20 36 150.5
102022 22 15 6.4 269 26 27 42 169
102032 32 31.5 19.4 361 38 38 57 189

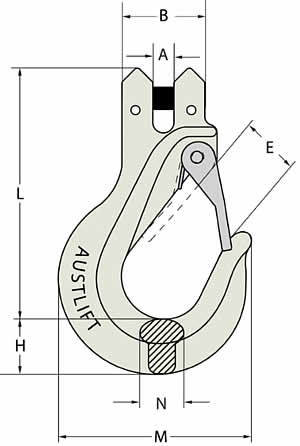

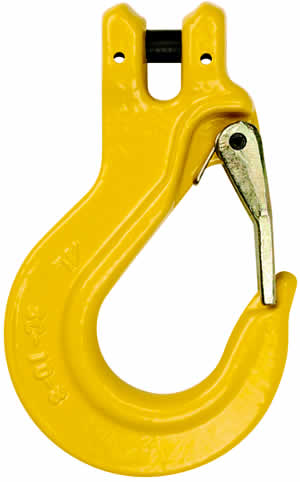

Grade 80 Sling Hook (Clevis Type)
​
SC Type Clevis Sling Hooks are a general purpose hook suitable for most slinging applications. They come with cast latch for added safety. Clevis allows easy connection to Chain.
  • Marked with Chain size, product ID, grade with manufacture quality mark and Austlift branded.
  • Manufactured from G80 alloy steel with a safety factor of 4 to 1.
  • Test Certificates available upon request.
  • Conforms to AS3776.
CODE CHAIN SIZE WLL Wt. DIMENSIONS
A B E N H L
mm tonne kg mm mm mm mm mm mm
102906 6 1.12 0.3 7.5 32 22 18 20.5 121
102908 7, 8 2 0.5 9 36 25.5 18 23.5 137
102910 10 3.15 0.95 12 46 34 20 30 175.5
102913 13 5.3 1.9 15 59 41.5 29.5 37.5 210.5
102916 16 8 3.45 17.5 70 46 34 42.5 248.5
102920 18, 20 12.5 6.5 23 80 52 45 54 309
102922 22 15 9.65 25.5 98 60 48 76 375.5

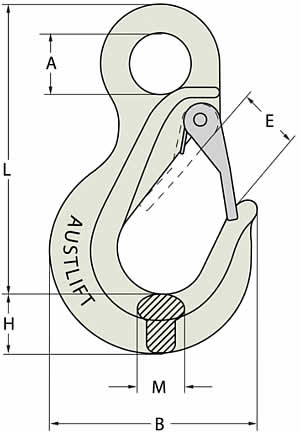

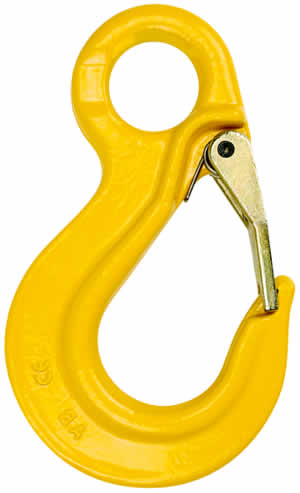

Grade 80 Sling Hook (Eye Type)
​
SE Type Eye Sling Hooks are a general purpose hook suitable for most slinging applications. They come with heavy duty latch for added safety. Eye allows easy connection to coup links and can be attached to lifting apparatus.
  • Marked with Chain size, product ID, grade with manufacture quality mark and Austlift branded.
  • Manufactured from G80 alloy steel with a safety factor of 4 to 1.
  • Test Certificates available upon request.
  • Conforms to AS3776.
CODE CHAIN SIZE WLL Wt. DIMENSIONS
A B E H mm L
mm tonne kg mm mm mm mm mm mm
103006 6 1.1 0.3 20 74 22 20.5 18 122
103008 7, 8 2 0.5 25.5 83 26 23.5 18 138.5
103010 10 3.2 0.8 32.5 107 34 30 20 176.5
103013 13 5.3 1.9 39.5 134.3 41 37.5 29.5 218
103016 16 8 3.4 50 157.5 44 42.5 34 260
103020 18, 20 12.8 5.3 60 189 52 53 44 310
103022 22 15 8.9 68 239 60 74 50 375.5
103026 26 21.2 13.4 75 245 71 83 63 412
103032 32 31.5 19 88 250 102 95 76 446

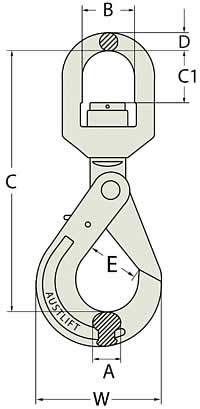

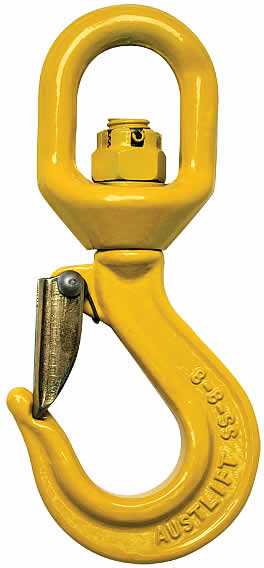

G80 Sling Hook (Swivel Type)
​
SS Type Swivel Sling Hooks are designed with a plain bush bearing swivel thus allowing the hook to swivel under load. Comes with heavy duty Safety Latch.
  • Marked with Chain size, product ID, grade with manufacture quality mark and Austlift branded.
  • Manufactured from G80 alloy steel with a safety factor of 4 to 1.
  • Test Certificates available upon request.
  • Conforms to AS3776.
  • Spare Latch Kits are available.
CODE CHAIN SIZE WLL Wt. DIMENSIONS
A B C E H L
mm tonne kg mm mm mm mm mm mm
102808 8 2 0.85 36 88.5 26 27 23.5 190
102813 10 3.15 1.54 42 104.5 34 32 29.5 233
102816 13 5.3 3.04 49 135 41 40 38 291.5
102810 16 8 5.36 61 161 53 45 45.4 352

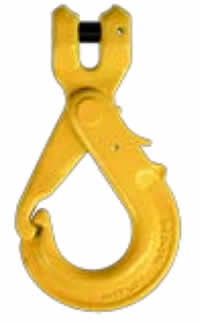

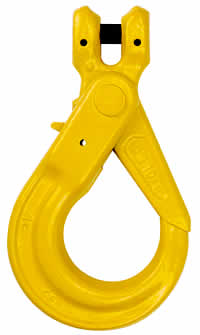

Grade 80 Self-Locking Hook (Clevis)
​
LC Type Clevis Self-Locking Hook allows the hook to remain open until the load is engaged. The hook will not open until the trigger at the back is pressed. The clevis style allows easy connection to the Chain.
  • Marked with Chain size, product ID, grade with manufacture quality mark and Austlift branded.
  • Manufactured from G80 alloy steel with a safety factor of 4 to 1.
  • Test Certificates available upon request.
  • Conforms to AS3776.
  • Spare Trigger Kits and Load Pins are available

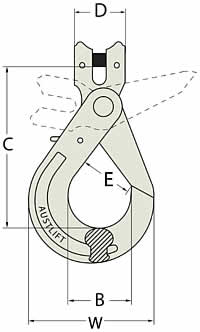

CODE CHAIN SIZE WLL Wt. DIMENSIONS
B C D E W
mm tonne kg mm mm mm mm mm
102206 6 1.1 0.4 34 96 32 28 69
102208 7,8 2 0.7 46 118.5 36 36 88
102210 10 3.15 1.5 58 144 46 45 107
102213 13 5.3 2.7 69 181.5 59 50 138
102216 16 8 5.6 86 216 70 60 182
102220 18, 20 12.5 10.5 92 238 81 72 204
102222 22 15 13.8 98 276 98 78 205
102226 26 21.2 18.2 110 311 118 106 240

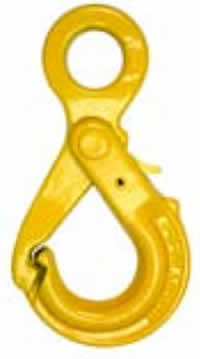

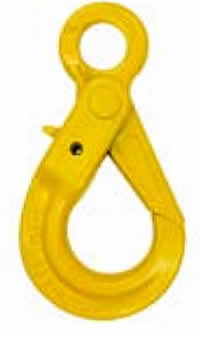

Grade 80 Self-Locking Hook (Eye Type)
​
Austlift LE Type Eye Self-Locking Hook allows the hook to remain open until the load is engaged. The hook will not open until the trigger at the back is pressed. The eye style allows easy connection to Chain Connectors, Shackles and Wire Rope Slings.
  • Marked with Chain size, product ID, grade with manufacture quality mark and Austlift branded.
  • Manufactured from G80 alloy steel with a safety factor of 4 to 1.
  • Test Certificates available upon request.
  • Conforms to AS3776.
  • Spare Trigger Kits are available.
CODE CHAIN SIZE WLL Wt. DIMENSIONS
A B D R H M
mm tonne kg mm mm mm mm mm mm
102306 6 1.1 0.5 22 34 10.5 110.5 20 15
102308 7,8 2 0.8 25 46 12 136 24 20
102310 10 3.15 1.5 32 58 13 169 28 26
102313 13 5.3 2.8 40 69 16.5 208 40.5 32.5
102316 16 8 5.4 50 86 20 254.5 50.5 41
102320 18, 20 12.5 10 61 92 26.5 290 62 50
102322 22 15 13.4 72 98 30 320 65 52
102326 26 21.2 18.5 80 110 34.3 362 75 60
102332 32 31.5 44.5 105 166 45 472 97 79.5

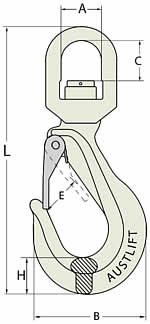

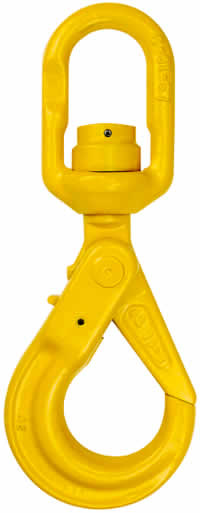

Grade 80 Self-Locking Hook (Swivel Type)
​
LS Type Swivel Self-Locking hook have a ball bearing swivel to allow the hook to swivel under load thus reducing the twist of a sling. Designed with enlarged eye for passing larger Shackles without disassemble of the hook.
  • Marked with Chain size, product ID, grade with manufacture quality mark and Austlift branded.
  • Ball bearing swivel allows the hook to rotate under full load.
  • Manufactured from G80 alloy steel with a safety factor of 4 to 1.
  • Test Certificates available upon request.
  • Conforms to AS3776.
  • Spare Trigger Kits and Swivel Bow head are available.
CODE CHAIN SIZE WLL Wt. DIMENSIONS
A B C C1 D E W
mm tonne kg mm mm mm mm mm mm mm
102406 6 1.1 0.71 15 32.5 164.5 35 11.5 28 69.7
102408 8 2 1.12 20 36 204 42 13 36.5 88
102410 10 3.15 2 26 42 240.5 50 15.5 45 107.7
102413 13 5.3 4 32.5 50 284.5 60 17 53.6 137
102416 16 8 7.3 38 61 350.5 65 21.5 61 165.5
Grade 80 Grip Self-Locking Hook (Eye Type)
​
Austlift LE Type Eye Self-Locking Hook allows the hook to remain open until the load is engaged. The hook will not open until the trigger at the back is pressed. The eye style allows easy connection to Chain Connectors, Shackles and Wire Rope Slings.
  • Marked with Chain size, product ID, grade with manufacture quality mark and Austlift branded.
  • Manufactured from G80 alloy steel with a safety factor of 4 to 1.
  • Test Certificates available upon request.
  • Conforms to AS3776.
  • Spare Trigger Kits are available.
CODE CHAIN SIZE WLL Wt. DIMENSIONS
A B E H L M
mm tonne kg mm mm mm mm mm mm
102608 8 2 0.75 25 40 34 21.5 163 18
102610 10 3.15 1.2 32 50 42 26.5 201.5 22.5
102613 13 5.3 1.93 40 60 50 31 243.5 29
102616 16 8 3.4 50 70 60 39.5 298 35
Grade 80 Grip Self-Locking Hook (Clevis Type)
​
Austlift GC Type Clevis Grip-Locking Hook allows the hook to remain open until the load is engaged. The hook will not open until the Trigger at the back is pressed. Clevis style allows easy connection to the Chain and also has a unique design to prevent side loading of the latch.
  • Marked with Chain size, product ID, grade with manufacture quality mark and Austlift branded
  • Manufactured from G80 alloy steel with a safety factor of 4 to 1.
  • Test Certificates available upon request.
  • Conforms to AS3776.
  • Spare Trigger Kits and Load Pins are available.
CODE CHAIN SIZE WLL Wt. DIMENSIONS
A B H E M L
mm tonne kg mm mm mm mm mm mm
102508 8 2 0.8 9.5 40 21.5 36 18 149
102510 10 3.15 1.5 12 50 26.2 44 22.5 189
102513 13 5.3 2.8 15 60 31 54 29 229
102516 16 8 5.1 18 70 39.5 63 35 270

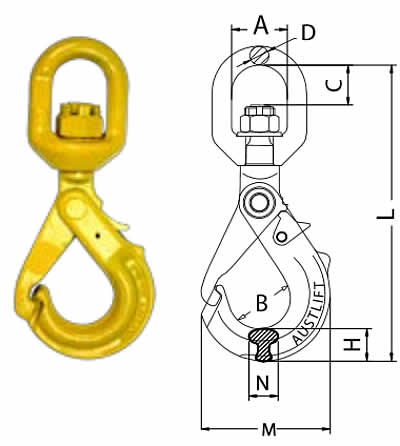

Grade 80 Grip Self-Locking Hook (Swivel Type)
​
Austlift GLS Type Swivel Self-Locking Hooks are designed with a plain bush bearing swivel to allow the hook to reduce twist under load. They also have a unique design to prevent side loading of the latch.
  • Marked with Chain size, product ID, grade with manufacture quality mark and Austlift branded.
  • Manufactured from G80 alloy steel with a safety factor of 4 to 1.
  • Test Certificates available upon request.
  • Conforms to AS3776.
  • Spare Trigger Kits and Swivel Bow head are available.
CODE CHAIN SIZE WLL Wt. DIMENSIONS
A B C D N M L
mm tonne kg mm mm mm mm mm mm mm
102710 8 2 0.97 35.5 40 26 12.5 18 83 193.5
102713 10 3.15 1.83 42 50 33 15 22.5 101 233
102708 13 5.3 3.3 50 60 39 18 29 121 273

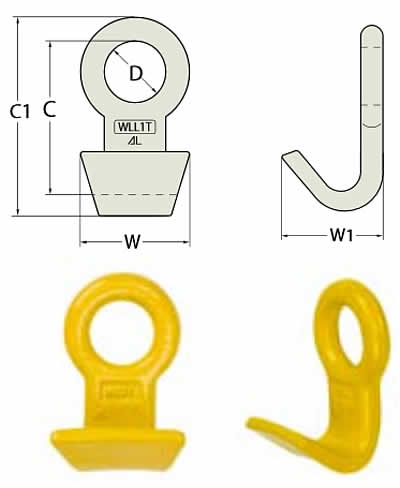

Drum Hook (Eye Type)
​
Eye Drum Hooks are used in pairs.
They are designed to lift and transport steel drum with drum lid in place. Manufactured from grade 80 alloy steel.
  • Drop forged and heat treated.
  • Conforms to AS3776 for G80 fittings.
  • Individually proof tested at 2 x WLL
  • Test Certificates available upon request.
  WLL Dimensions
Code Tonne C
mm		 C1
mm		 D
mm		 W
mm		 W1
mm
104401 1t/pair 109 118.5 38 59 60

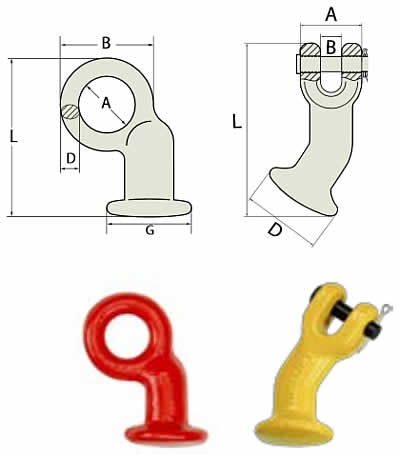

Elephants Foot
​
Elephants Foot are commonly used as a lashing point to secure trucks, cars, container chassis and other vehicles on ships and barges in the marine industry.
  • Lashing capacity of 5,000 kg with a minimum break load of 20,000 kg.
  • Test Certificates available upon request.
Code   LC MBS WL Dimensions
  Type kg Tonne kg A
mm		 B
mm		 D
mm		 G
mm		 L
mm
106100 Eye 5000 20 0.67 28 60 16 52.5 116
106200 Clevis 5000 20 0.97 16 46 59 - 130
Foundry Hook (Clevis Hook)
​
FE Type Clevis Foundry Hooks are a special purpose hook with large mouth opening,
The clevis allows easy connection to the chain.
  • Suitable for lifting pipes and foundry applications.
  • Marked with Chain size, product ID, grade with manufacture quality mark
  • Manufactured from G80 alloy steel with a safety factor of 4 to 1
  • Test Certificates available upon request
  • Conforms to AS3776
Code Type WLL Weight Dimensions
  mm Tonne kg A
mm		 E
mm		 M
mm		 N
mm		 L
mm
107008 7,8 2 1.1 9.5 63.4 128 18 161
107010 10 3.15 2.5 13 76.9 156 32 199

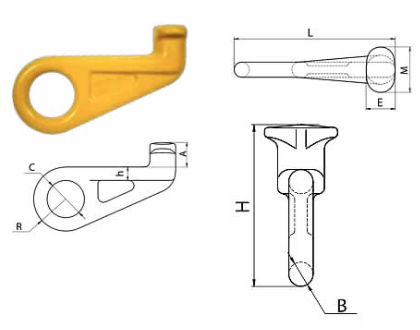

Container Hook
​
Eye Type Container Hooks are a special purpose hook suitable for lifting containers by connection to twist lock pocket.
  • The large diameter eye allows most hook sizes to fit.
  • There is left and right hand configurations and a straight configuration available.
  • Marked with Chain size, product ID, grade
  • Manufacture quality mark
  • Manufactured from G80 alloy steel with a safety factor of 4 to 1
  • Conforms to AS 3776, Test Certificates available upon request.
    Chain Size WLL Weight Dimensions
Code   G 80
mm		 G 100
mm		 kg   A
mm		 B
mm		 C
mm		 E
mm		 R
mm		 M
mm		 L
mm		 H
mm		 h
mm
104410 Straight 20 19 12.5 4 46 25 70 48 60 75 265 166 25
104412 LH 45 20 19 12.5 4 46 25 70 48 60 75 265 166 25
104413 RH 45 20 19 12.5 4 46 25 70 48 60 75 265 166 25

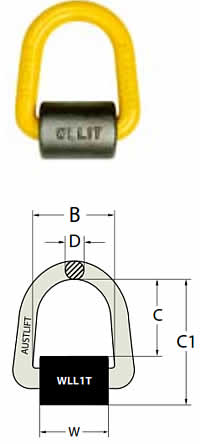

Weld on Point
​
Austlift WP Type Weld on Lifting Points can be welded on any carbon steel surface as a lifting point, or to be used as a fixed anchor point for spreader beam attachment.
Can also be used as an anchor point for load restraint applications.
  • Marked with work load limit, product ID,grade with manufacture quality mark
  • Manufactured from treated alloy steel with safety factor of 4:1
  • Conforms to AS3776
  • Welding instructions supplied with each unit
Code WLL Weight Dimensions
  Tonne kg B
mm		 D
mm		 C
mm		 C1
mm		 W
mm
104001 1 0.55 55 14 35 95.7 50
104003 3 0.9 64 17 50 99 58
104005 5 1.8 70 22 70 137 64
104008 8 2.5 85 26.5 90 144 66.5

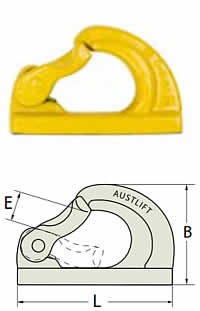

Universal Weld on Hook (with Latch)
​
WH type Weld-on Hooks are a versatile hook for lifting and spreader beam attachment applications.
They can also be used for any fixed anchor point after welding the hook on.
  • Marked with work load limit, grade with manufacture quality mark.
  • Made from G80 alloy steel with safety factor of 4:1
  • Conforms to AS3776, Test Certificates available upon request.
  • Welding instructions supplied with each unit
Code Chain Size WWL BL Weight Dimensions
  mm Tonne Tonne kg B
mm		 E
mm		 L
mm
103801 6 1.1 5.5 0.35 53 18 87
103802 7, 8 2 10 0.55 63.5 26 112
103803 10 3.2 16 0.87 75 30 127.5
103805 13 5.3 26.5 1.75 92.5 35 160
103808 16 8 40 3 106 40 180
103812 22 12.5 62.5 6.16 140 51 236
Chain Slings Made to Order
​
Tas Lifting Sales & Servicing can make chain slings to your requirements and deliver to anywhere at a competitive price.
Simply contact us for a quote....
