The Comeup 12 & 24 Volt DC Winches are heavy duty winches; ideal for installation in small trucks and utilities to eliminate the need for manual lifting and pulling.

They are constructed from heavy duty material which creates a high performance product with low maintenance; suited for a wide range of applications.

PRODUCT FEATURES
  • Compact, powerful and robust.
  • Corrosion resistant.
  • 12 or 24 Volt options.
  • Strong robust mechanical brake.
  • Over-current protection.
  • Strong base for horizontal mounting.
  • Remote pendant control - 4.4m length.
  • Weighted hook on DH500 models.
  • Galvanised wire rope.
  • Duty cycle is 25% ED and maximum frequency of 60 times per hour.
  • Circuit breakers are supplied with all models.


SPECIFICATIONS & DIMENSIONS
Specifications: COMEUP 12 & 24 VOLT DC WINCHES
MODEL DH120 DH120A DH300 DH300A DH500 DH500A
Stock Code PDH120 PDH125 PDH300 PDH305 PDH500 PDH505
Rated Capacity (kg) 120 120 300 300 500 500
Voltage (A) DC12V DC24V DC12V DC24V DC12V DC24V
No Load Amp 7 4 10 5 15 12
Full Load Amp 20 10 40 18 50 30
Circuit Breaker Rating (Amp) 20 10 30 15 50 30
Speed (m/min) 5 5 5 5 4 4
Gear Ratio 56:1 56:1 240:1 240:1 276:1 276:1
Wire Rope (Ø mmxm) Ø4 x 5 Ø4 x 5 Ø4.8 x 12 Ø4.8 x 12 Ø6.2 x 12 Ø6.2 x 12
Net Weight (kg) 17 17 27 27 27 27

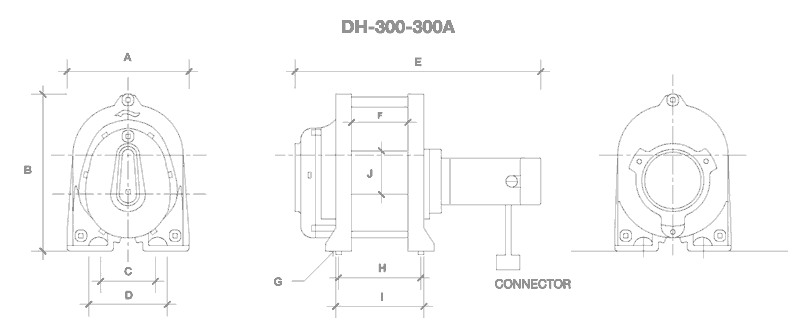

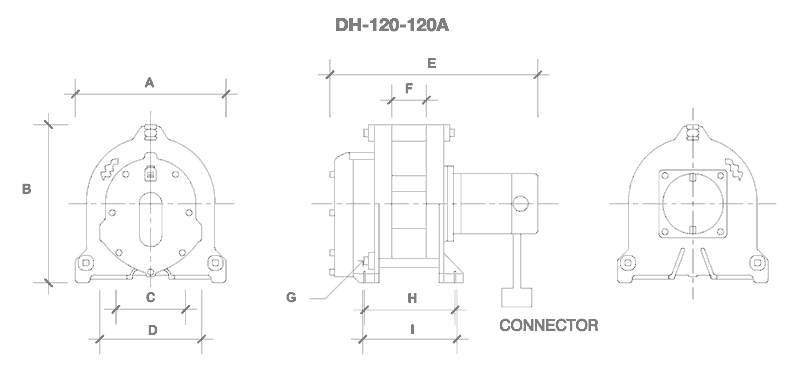

Dimensions: COMEUP 12 & 24 VOLT DC WINCHES - DH120 - DH120A - DH300 - DH300A (in mm)
MODEL DH120 DH120A DH300 DH300A
A 200 200 210 210
B 210 210 270 270
C 92 92 94 94
D 135 135 135 135
E 276 276 423 423
F 46 46 97 97
G B - Ø10.5 B - Ø10.5 B – Ø10.5 B – Ø10.5
H 120 120 142 142
I 125 125 152 152
J - - 75 75

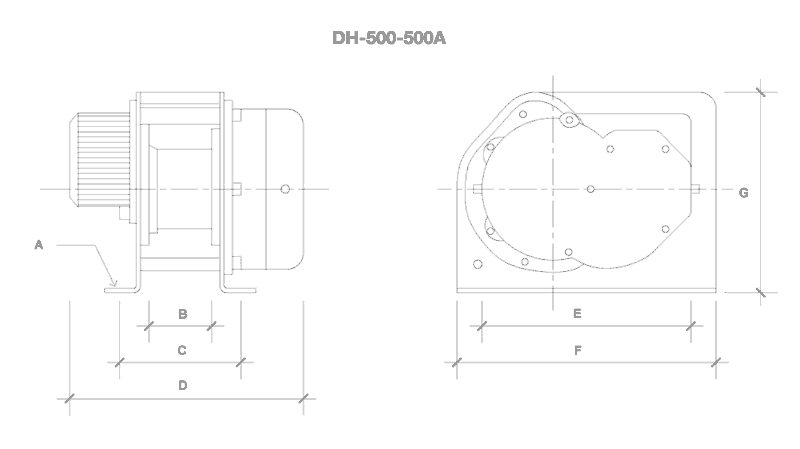

Dimensions: COMEUP 12 & 24 VOLT DC WINCHES – DH500 – DH500A (in mm)
MODEL DH500 DH500A
A Ø14 Ø14
B 75 75
C 145 145
D 280 280
E 250 250
F 310 310
G 240 240
