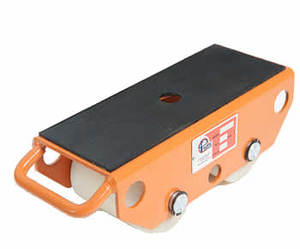

Load Rollers
|
| ||
The Pacific Load Rollers are designed for moving heavy loads across flat surfaces.
The nylon wheels provide added protection to flooring and with the option between swivel or fixed operation, this product is suited for many applications.
PRODUCT FEATURES
The nylon wheels provide added protection to flooring and with the option between swivel or fixed operation, this product is suited for many applications.
PRODUCT FEATURES
- Available in capacities varying from 2 to 24 tonne.
- Nylon wheels with sealed bearings for increased durability.
- Non-slip rubber grip surfaces to prevent load movement.
- High visibility colours for safety purposes.
Specifications & Dimensions
| MODEL | PLR020 | PLR040 | PLR045 | PLR060 | PLR065 | PLR120 | PLR245 |
|---|---|---|---|---|---|---|---|
| Stock Code | PLR020 | PLR040 | PLR045 | PLR060 | PLR065 | PLR120 | PLR245 |
| Rated Capacity per Unit (tonne) | 2 | 4 | 4 | 6 | 6 | 12 | 24 |
| Type | Fixed | Fixed | Swivel | Fixed | Swivel | Fixed | Swivel |
| Plate Size (W x L in mm) | 95 x 260 | 190 x 260 | 180 x 115 | 285 x 260 | 220 x 395 | 230 x 270 | Ø270 |
| Overall Roller Size (mm) | 115 x 270 x 110 | 230 x 270 x 110 | 250 x 310 x 110 | 345 x 270 x 110 | 560 x 395 x 110 | 400 x 345 x 145 | 1120 x 415 x 145 |
| Wheels | 2 | 4 | 4 | 6 | 8 | 8 | 16 |
| Wheel Size (D x W in mm) | 82 x 100 | 82 x 100 | 82 x 100 | 82 x 100 | 82 x 100 | 115 x 60 | 115 x 60 |
