Forklift Accessories |
| ||

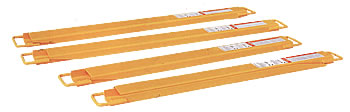

Fork Extensions TSFT5
Features Specifications
Fork Length - Extended 1524mm
Fork Length - Minimum 1016mm
Fork Width Fit 127mm
Weight - Pair 49kg
- Welded Steel Construction
- Fits onto forks up to 50mm thick
- Steel Retaining strap prevents for extensions from sliding off forks during use.
- Specials made to order to suit most fork lifts.
Features Specifications
Fork Length - Extended 1524mm
Fork Length - Minimum 1016mm
Fork Width Fit 127mm
Weight - Pair 49kg
Fork Extensions TSFT6
Features Specifications
Fork Length - Extended 1830mm
Fork Length - Minimum 1220mm
Fork Width Fit 152mm
Weight - Pair 63kg
- Welded Steel Construction
- Fits onto forks up to 50mm thick
- Steel Retaining strap prevents for extensions from sliding off forks during use.
- Specials made to order to suit most fork lifts.
Features Specifications
Fork Length - Extended 1830mm
Fork Length - Minimum 1220mm
Fork Width Fit 152mm
Weight - Pair 63kg
Telescopic Fork Mounted Jibs NLB6430
Features Specifications
Fork Length - Extended 3500mm
Fork Length - Minimum 755mm
Capacity - Retracted 3 Tonnes
Capacity - Fully Extended 640kg
- Welded Steel Construction
- Fits onto forks up to 50mm thick
Features Specifications
Fork Length - Extended 3500mm
Fork Length - Minimum 755mm
Capacity - Retracted 3 Tonnes
Capacity - Fully Extended 640kg

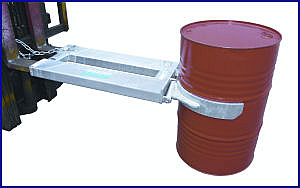

Drum Lifter SDL 1
Designed for standard 205 litre steel drums, the fully automatic clamping action enables safe and precise placement of drums without the operator having to leave the Drivers seat.
The Support Arms are adjustable to ensure secure clamping. The drum is gripped by pushing the arms against the drum centre and driving forward with the Forklift.
The arms will engage around the drum and lock under the rolling hoop when raised. The heavier the load, the tighter the grip becomes.
To release the drum, simply lower the drum onto ground level and reverse the Forklift.
The finish on the Drum Lifter is Zinc Plated steel.
SPECIFICATIONS:
• Safe Working Load (SWL) 500kg
• Unit Weight 100kg
• Load Centre 1375mm
• HCG 760mm
• VCG -40mm
• Pocket Size 185 x 60mm
• Pocket Centres 420mm
Designed for standard 205 litre steel drums, the fully automatic clamping action enables safe and precise placement of drums without the operator having to leave the Drivers seat.
The Support Arms are adjustable to ensure secure clamping. The drum is gripped by pushing the arms against the drum centre and driving forward with the Forklift.
The arms will engage around the drum and lock under the rolling hoop when raised. The heavier the load, the tighter the grip becomes.
To release the drum, simply lower the drum onto ground level and reverse the Forklift.
The finish on the Drum Lifter is Zinc Plated steel.
SPECIFICATIONS:
• Safe Working Load (SWL) 500kg
• Unit Weight 100kg
• Load Centre 1375mm
• HCG 760mm
• VCG -40mm
• Pocket Size 185 x 60mm
• Pocket Centres 420mm
| Wheelie Bin Tipper |

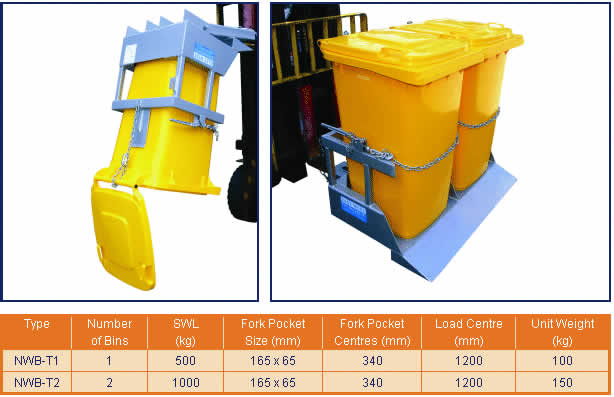

Wheelie Bin Tipper NWB-T
Suitable for emptying 240 litre plastic wheelie bins.
The bin is wheeled into the Tipper and secured with safety chains.
The 180 degree tipping operation is simple and safe with the operator never having to leave the seat during the tipping cycle.
Available for one (1) or two (2) plastic wheelie bins.
The finish on the Wheelie Bin Tipper is enamel painted.
Suitable for emptying 240 litre plastic wheelie bins.
The bin is wheeled into the Tipper and secured with safety chains.
The 180 degree tipping operation is simple and safe with the operator never having to leave the seat during the tipping cycle.
Available for one (1) or two (2) plastic wheelie bins.
The finish on the Wheelie Bin Tipper is enamel painted.
| Roll Prong |

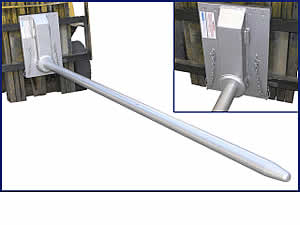

RPC Carriage Mounted Roll Prong
Carriage Mounted Roll Prongs suitable for carpet, vinyl, fabric or similar products.
Units are available for Class II, III and IV Forklift carriages, along with pin mounted.
All "QR" model Roll Prongs feature "Quick Release" lower Carriage Hooks and a spring loaded locating pin for easy installation.
Prongs are manufactured from high tensile steel and can be made to any length.
The 'lost load' on the Class II Roll Prong is 100mm and on the Class III Roll Prong is 200mm. For Class IV or V mountings, please ask for drawings of mounting plate designs and specifications.
The standard finish on all Roll Prongs is painted enamel.
Carriage Mounted Roll Prongs suitable for carpet, vinyl, fabric or similar products.
Units are available for Class II, III and IV Forklift carriages, along with pin mounted.
All "QR" model Roll Prongs feature "Quick Release" lower Carriage Hooks and a spring loaded locating pin for easy installation.
Prongs are manufactured from high tensile steel and can be made to any length.
The 'lost load' on the Class II Roll Prong is 100mm and on the Class III Roll Prong is 200mm. For Class IV or V mountings, please ask for drawings of mounting plate designs and specifications.
The standard finish on all Roll Prongs is painted enamel.
| Bin Tipper |

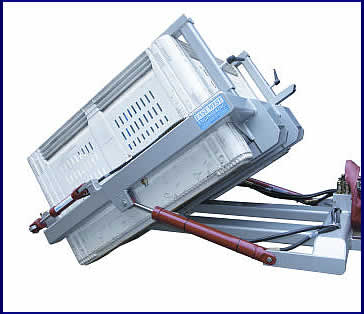

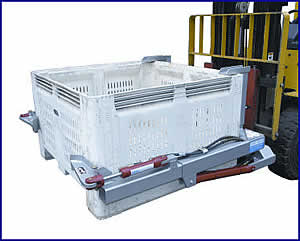

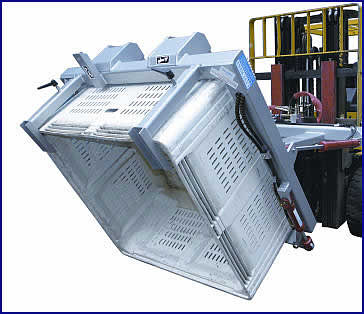

Bin Tipper FBT-SH
The Type FBT-SH Forward Bin Tipper is ideal for handling and emptying bins in agricultural and manufacturing industries.
This slip-on attachment is fitted in seconds, requiring only a single hydraulic function. The purpose built hydraulic sequencing valve eliminates the potential to drop a bin (rotation will not commence until bin is correctly restrained), while the gentle action of the clamp arms prevents damage to the bins.
The standard FBT-SH unit will suit bins up to 1200mm square, with height range of 675 to 925mm.
Non standard size and capacity attachments can be manufactured. This unit is also available in carriage mounted applications.
SPECIFICATIONS:
The Type FBT-SH Forward Bin Tipper is ideal for handling and emptying bins in agricultural and manufacturing industries.
This slip-on attachment is fitted in seconds, requiring only a single hydraulic function. The purpose built hydraulic sequencing valve eliminates the potential to drop a bin (rotation will not commence until bin is correctly restrained), while the gentle action of the clamp arms prevents damage to the bins.
The standard FBT-SH unit will suit bins up to 1200mm square, with height range of 675 to 925mm.
Non standard size and capacity attachments can be manufactured. This unit is also available in carriage mounted applications.
SPECIFICATIONS:
- Lost Load: 300mm
- Unit Weight: 290kg
- SWL: 1000kg
- Max Tine Size: 155 x 55mm
|
|
NGA360A Single Drum Lifter
Features Specifications
Capacity 360kg
Drum Capacity 205 Litres
Fork Opening 560mm
Overall Size 880 x 710 x 1000mm
Weight 60kg
Features Specifications
Capacity 360kg
Drum Capacity 205 Litres
Fork Opening 560mm
Overall Size 880 x 710 x 1000mm
Weight 60kg
NGA720A Double Drum Lifter
Features Specifications
Capacity 720kg
Drum Capacity 2 x 205 Litres
Fork Opening 605mm
Overall Size 1030 x 850 x 1000mm
Weight 96kg
Features Specifications
Capacity 720kg
Drum Capacity 2 x 205 Litres
Fork Opening 605mm
Overall Size 1030 x 850 x 1000mm
Weight 96kg
NGA720A Double Drum Lifter
- Simple mechanical forklift attachment for safely lifting 205 litre steel drums
- Units to handling one to two drums simultaneously
- Automatic operation for picking up and releasing 205 litre steel drums
Probst

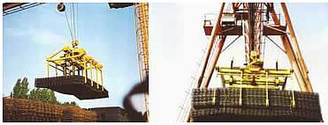

Hydraulic Steel mesh grab - internal grab as forklift attachment.
Hydraulic Steel mesh grab - internal grab as forklift attachment.
Reinforcement wire mesh grab - mechanical opening and closing. Electrical hydraulic height adjustment.
