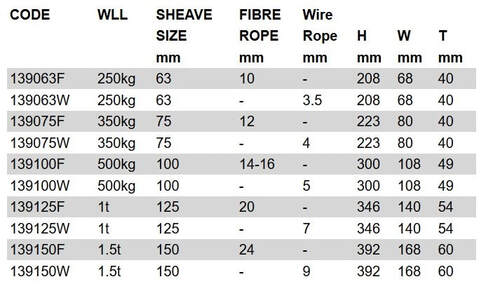

Manually operated Sheave Blocks are used for general hoisting use such as Shipping, Mining, General Engineering, Agriculture and domestic applications.
- Manufactured for ease of operation light weight, durable and compact in design.
- Swivel Hook type, single Sheave with rated capacities from 250kg to 1.5 tonne.
- Available in Fibre Rope and Wire Rope sheave blocks with 63mm to 150mm sheave diameters also fitted with bronze bush.
- Conforms to AS 2089, Test Certificate supplied.

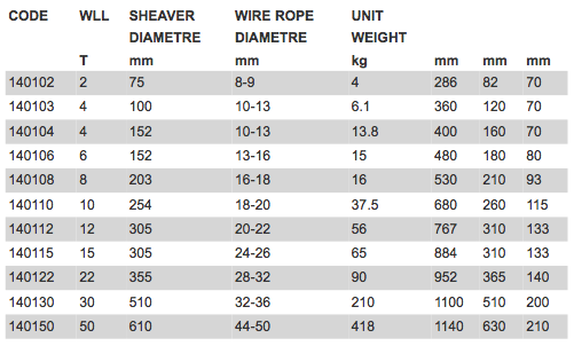

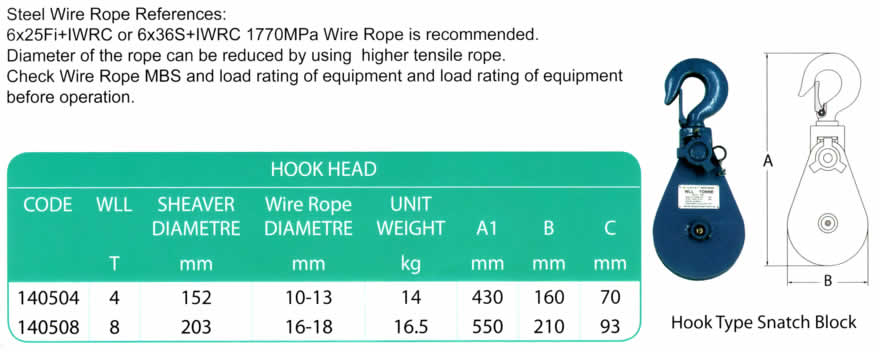

Heavy Duty Snatch Block
Manually operated Snatch Blocks are popular in the Mining, Construction, Off Shore Rigging and heavy duty lifting applications.
Manually operated Snatch Blocks are popular in the Mining, Construction, Off Shore Rigging and heavy duty lifting applications.
- Made from hi-tensile steel body and cast steel Sheave.
- Grease nipples fitted with roller and brass bush bearings.
- Blocks come with swivel Bow Shackle or Hook Head.
- Capacities available from 2 tonne to 50 tonne.
- Drop forged, heat treated swivel shackle.
- MBS is 5 times of WLL.
- Conforms to AS2089. Test Certificate supplied.
