​Trolleys for Electric Hoists

The trolleys for chain hoists are a perfect match for DC chain hoists and ideal for installation on I-beam girders or on our KBK light crane system.

​For push travel or with electric positioning – these trolleys provide horizontal travel solutions tailored to meet specific requirements for our compact hoist units.

  • U type trolleys for manual travel

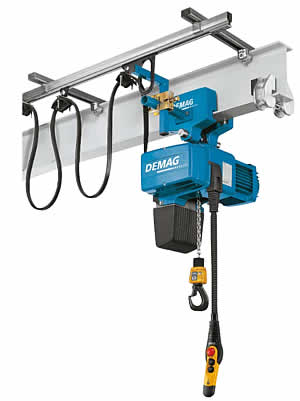

  • E type trolleys for low-sway electric travel
  • Click-fit trolleys that can be clicked into position
  • Smooth-running KBK trolleys as system components
  • Low-headroom trolleys for optimum utilisation of the available height
  • Double chain hoist for mechanically synchronised lifting, e.g. for long material or large-volume components

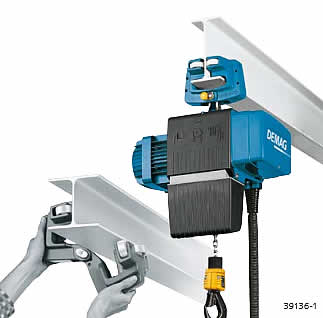

Click-fit Trolleys
  • Simple click-fit installation
  • Articulated trolleys (minimum curve radius: 800 mm)
  • Easily adaptable to standard-profile or parallel-flange sections
  • High safety and reliability thanks to integrated drop-stop and lift-off protection
  • Universal solutions for loads up to 550 kg
  • Flange widths from 50 to 91 mm

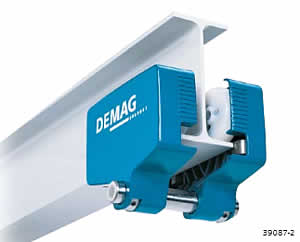

U/RU Push-Travel Trolleys
  • Excellent travel characteristics
  • Fast and simple installation
  • Can be used on parallel and sloping flanges
  • Smooth travel, low travel resistance
  • Negotiate curves down to a minimum radius of 1,000 mm
  • Drop stop integrated into the side cheek
  • Extremely low girder wear
  • Designs with polyamide or steel rollers
  • Compact, state-of-the-art industrial design.
  • Four sizes: U 11 up to 1,100 kg, U 22 up to 2,200 kg, U 34 up to 3,.400 kg, RU 56 up to 5,600 kg

Max. displaceable weight incl. dead load 2) [kg]

Travel drive Travel speed at 50/60 Hz Possible trolleys Max. Weight [kg]
Steps Stepless
Vrated at full load [m/min] Vmax at partial load 1) [m/min] V at full load [m/min] V at partial load [m/min]
1,100 E 11 24/6 30/7.5 1.2-24 1.5-30 U 11 4
2,200 E 22 24/6 30/7.5 1.2-24 1.5-30 U 22 U 34 5
2,200 E 22 27/7 33/8 1.4-27 1.65-33 RF 125 5
3,400 E 34 14/3.5 - 0.7-14 - U 34 5
5,600 EU 56 12/4 24/6 40/10  -  On application   RU 56 8.8

1) Possible by programming other parameters
2) Max. displaceable weight/max. gradient 1% > 1% on request
