Sheave Blocks

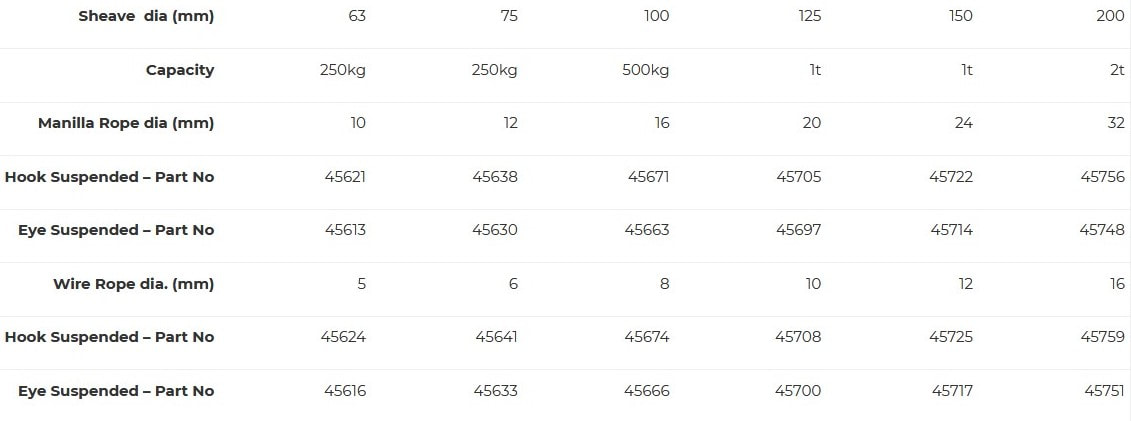

PWB Single Sheave Block
|
|
Capacity: 250kg – 2T
- Fully interchangeable sheaves.
- Supplied with either drop-forged swivel hooks or eyes.
- Beckets are standard on all single and double blocks.
- Bronze bushes and safety latches are standard across the range.

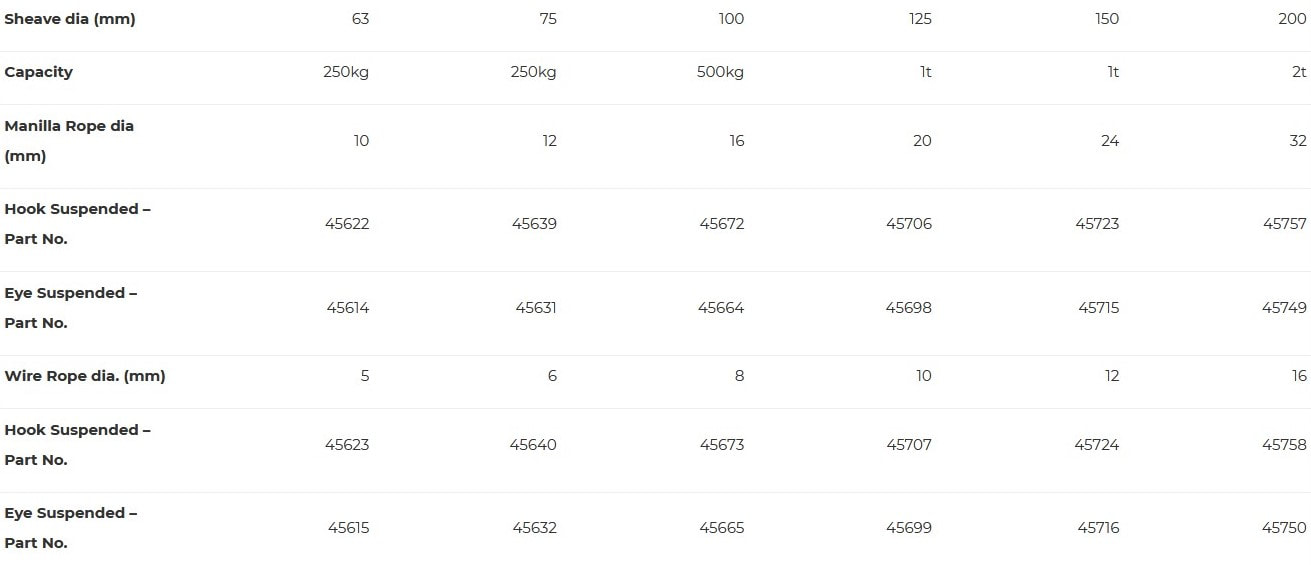

Snatch Block
|
|
Capacity: 250kg – 2T
- Fully interchangeable sheaves.
- Supplied with either drop-forged swivel hooks or eyes.
- Beckets are standard on all single and double blocks.
- Bronze bushes and safety latches are also standard across the range.

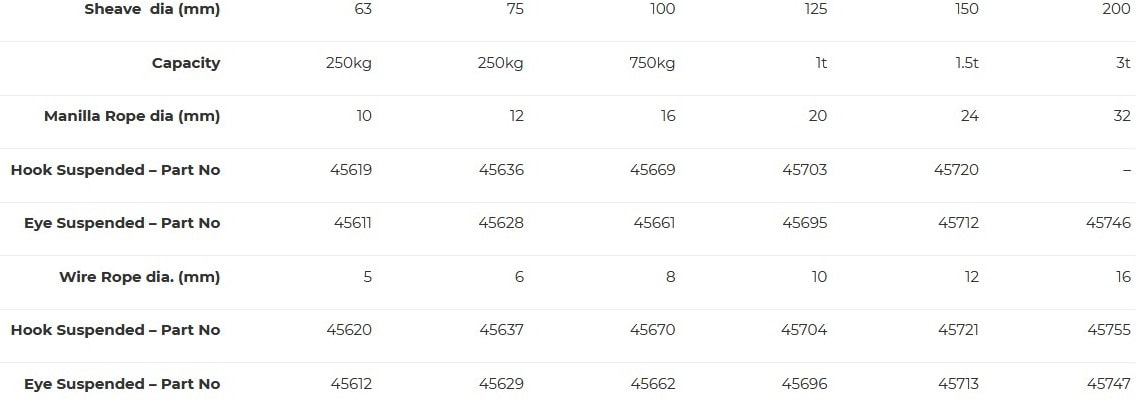

Double Sheave Block
|
|
Capacity: 250kg – 3T
- Fully interchangeable sheaves.
- Supplied with either drop-forged swivel hooks or eyes.
- Beckets are standard on all single and double blocks.
- Bronze bushes and safety latches are also standard across the range.

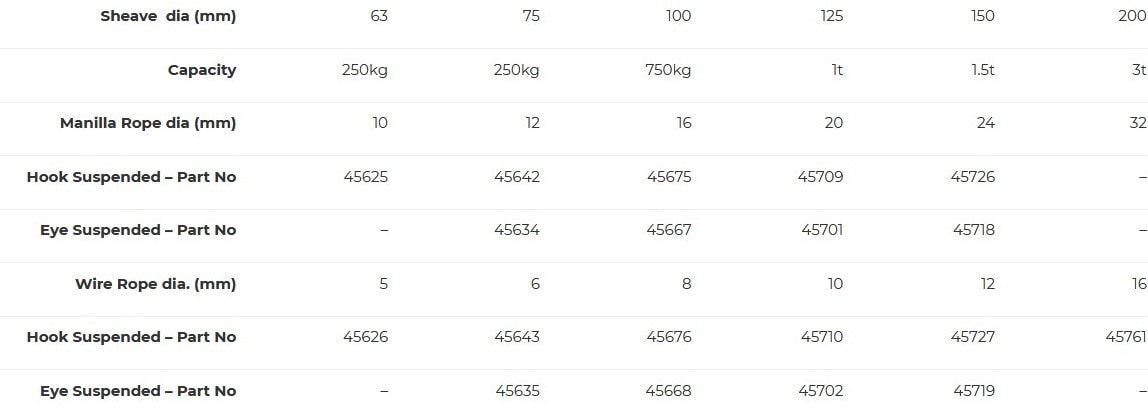

PWB Treble Sheave Blocks
|
|
Capacity: 250kg – 3T
- Fully interchangeable sheaves.
- Supplied with either drop-forged swivel hooks or eyes.
- Beckets are standard on all single, double and treble blocks.
- Bronze bushes and safety latches are also standard across the range.

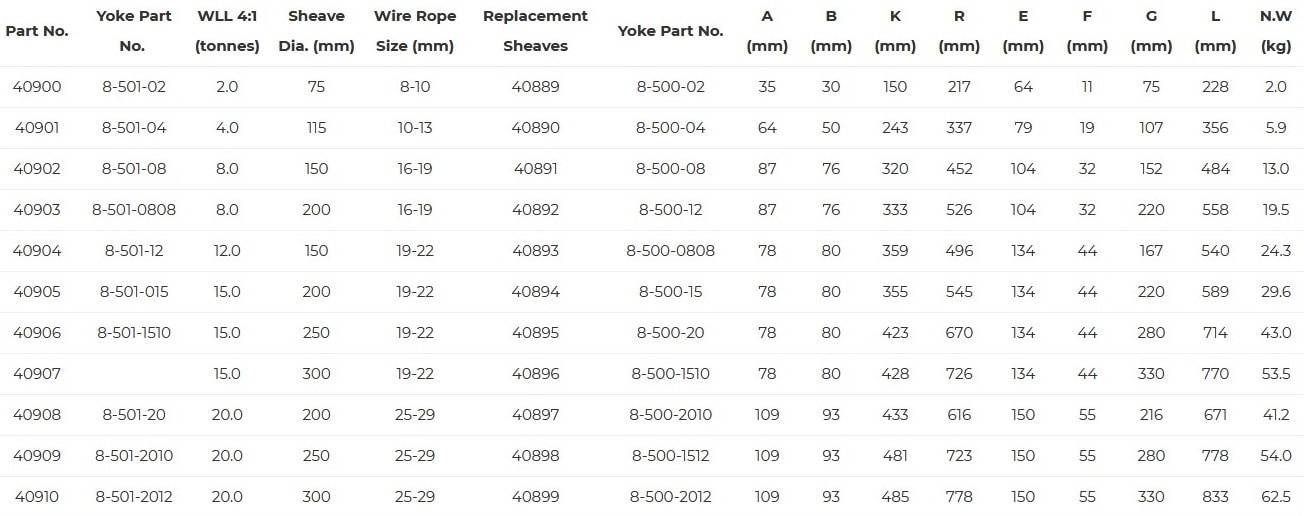

Snatch Block with Shackle
|
|
Sheave Diameter: 75 – 250mm
- Manufactured from the highest quality tensile steel.
- Available in sizes 2 tonne to 20 tonne capacity.
- Suitable for wire rope sizes 5/16″ (8mm) to 1-1/8″ (29mm).
- Sheaves complete with bronze bush and greased fitting for ease of operation.

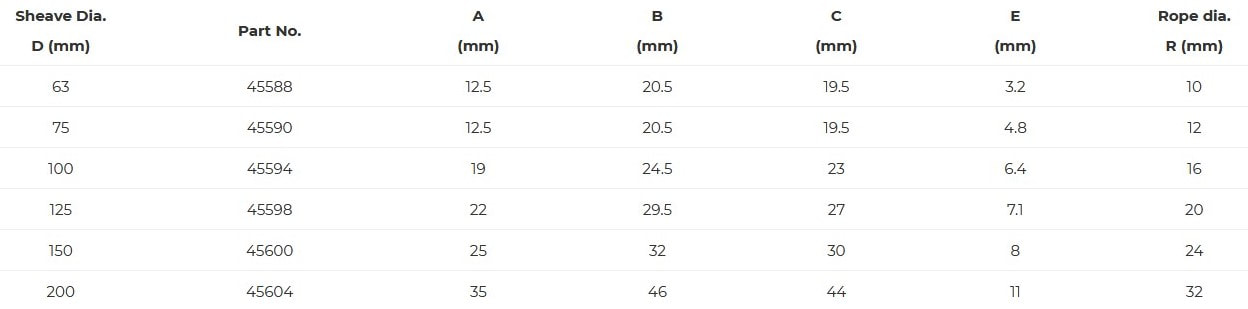

Manilla Rope Sheaves
Sheave Diameter: 63 – 200mm
Fully interchangeable sheaves.
Sheave Diameter: 63 – 200mm
Fully interchangeable sheaves.
