Lifting Magnets
DPM Permanent Magnets
Our permanent magnets are universal load handling attachments for all magnetisable loads. They can be used at various workplaces – in production and assembly areas or outdoors. They provide safe and reliable operation in all applications. And the following features:
Our permanent magnets are universal load handling attachments for all magnetisable loads. They can be used at various workplaces – in production and assembly areas or outdoors. They provide safe and reliable operation in all applications. And the following features:
- operation independent of the mains
- five sizes with load capacities from 125 kg to 2,000 kg
- suitable for round and flat material
- no residual magnetism
- single handed operation with lever control with integrated safety features
| DPM 125 | ||
| Load capacity [kg] | 150 | 60 |
| Material thickness [mm] | 10 | 35/180 |
| Material length [mm] | 2,000 | 2,000 |
| Order number | 819 906 44 | |
| DPM 250 | ||
| Load capacity [kg] | 250 | 125 |
| Material thickness [mm] | 15 | 35/270 |
| Material length [mm] | 2,000 | 2,000 |
| Order number | 819 907 44 | |
| DPM 500 | ||
| Load capacity [kg] | 500 | 250 |
| Material thickness [mm] | 20 | 35/220 |
| Material length [mm] | 2,500 | 2,500 |
| Order number | 819 908 44 | |
| DPM 1000 | ||
| Load capacity [kg] | 1,000 | 500 |
| Material thickness [mm] | 25 | 40/360 |
| Material length [mm] | 3,000 | 3,000 |
| Order number | 819 903 44 | |
| DPM 2000 | ||
| Load capacity [kg] | 1,500 | 1,000 |
| Material thickness [mm] | 30 | 40/340 |
| Material length [mm] | 3,000 | 3,000 |
| Order number | 819 910 44 | |
Lifting Magnet Benefits
- Low operating costs
- High level of safety and reliability
- Independent of the mains supply for use anywhere
- Lever control with integrated safety feature to prevent accidental switch-off
- No residual magnetism
- Requires little maintenance
Round Lifting Magnets
Our R round magnets offer outstanding performance when used as single units – thanks to their compact dimensions and high load capacities. Our round magnets can be employed as RT spreader magnets for transporting large pieces of sheet and plate metal. Suspension at many points eliminates the sag that typically occurs in such applications.
High quality
Our R round magnets offer outstanding performance when used as single units – thanks to their compact dimensions and high load capacities. Our round magnets can be employed as RT spreader magnets for transporting large pieces of sheet and plate metal. Suspension at many points eliminates the sag that typically occurs in such applications.
- Load capacities up to 1,400 kg for safety factor of 2 (per magnet)
- Steel housing offering high permeability
- Single magnets with integrated rectifier, switch and suspension ring
- Spreader magnets available with separate electric equipment
- Spreader magnets can be operated in groups
High quality
- Coils (fully encapsulated with special compound) made of enamelled copper wire
- Housing made of highly permeable steel
- Single magnets equipped with rectifier, switch and suspension eye
- Load capacities up to 1,400 kg for safety factor of 2 (per magnet)
- Connection to power supply with mounting equipment incl. cable drum
- To hold and transport small sheet or plate metal items and iron or tool parts
- For handling pig iron, broken castings, scrap, small parts, screws, nuts and bolts
- Switch, rectifier and suspension eye already fitted
- For transporting larger sheet and plate metal
- Eliminate the large sag that typically occurs when sheet metal is suspended at many points
- Separate electric equipment for solutions to meet a wide range of requirements
- Single sheets of metal can be taken from stacks
- Thermal cutting tables can be completely cleared following the cutting operation
- Specific cut parts can be targeted and picked up using groups of magnets
| Sizes | P | Weight | Load capacity for air gap [kg] |
| w | [kg] | d/300 | |
| R15 | 60 | 15 | 315 |
| R20 | 80 | 17 | 490 |
| R26 | 140 | 37 | 650 |
| R30 | 400 | 75 | 725 |
Battery Magnets
Our battery magnets are the ideal solution wherever you need to transport magnetisable loads safely and efficiently, independently of a mains power supply.
They can be used as stationary units installed on wall and pillar-mounted – or as mobile equipment on forklifts and workshop cranes, in stores and in industrial applications where sheet and plate metal is processed.
Here are just a few of their outstanding advantages:
High safety and reliability
Universal application
Our battery magnets are the ideal solution wherever you need to transport magnetisable loads safely and efficiently, independently of a mains power supply.
They can be used as stationary units installed on wall and pillar-mounted – or as mobile equipment on forklifts and workshop cranes, in stores and in industrial applications where sheet and plate metal is processed.
Here are just a few of their outstanding advantages:
- Universal application
- Compact design
- High safety and reliability
- High load capacity
- Loads are always safely picked up
- Automatic charging
High safety and reliability
- Loads are always picked up safely thanks to automatic switch-on disabler if the battery voltage is too low
- Residual magnetism is reduced to a minimum by means of automatic demagnetisation
- Automatic charging control protects the 12 V battery against overcharging
- Charge level can be seen at all times thanks to display of battery voltage by light-emitting diodes (dual monitoring by acoustic signal and optical indicator)
- Automatic self-test of the warning device when the charging process begins
Universal application
- Outdoor operation also possible with IP 53 enclosure (power source, charger and operating elements combined into one unit)
- Single metal sheets can be separated from the load by flicking the toggle switch
- High load capacity
| Type | DBM 34 | DBM 68 |
|---|---|---|
| Order no. | 727 204 44 | 727 205 44 |
| Maximum load capacity for safety factor of 2 [kg] | approx. 2,000 | approx. 4,000 |
| Power consumption [W] | 52.2 | 86.8 |
| Battery voltage [V] | 12 | 12 |
| Battery capacity [ah] | 44 | 120 |
| Discharging time at 50% CDF/10 min. (in hours) | 8 | 8 |
| Max. charging time (in hours) | 10 | 10 |
| Charging voltage | 220 V AC/50 Hz | |
| Length [mm] | 340 | 680 |
| Width [mm] | 250 | 250 |
| Height incl. suspension [mm] | 460 | 525 |
| Suspension eye diameter [mm] | 80 | 120 |
| Deadweight [kg] | 80 | 169 |
Auslift Permanent Magnet
Pacific Lifting Magnet

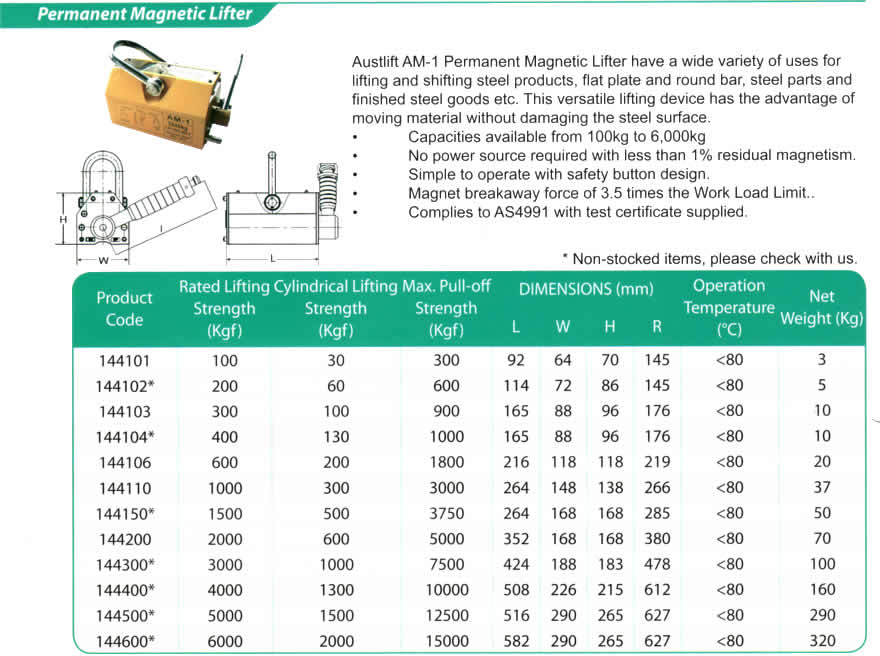

- The magnetic lifter features a breakaway force 3.5 times greater than the working load limit.
- Weight capacities are available from 100kg to 6000kg.
- No electricity needed which will increase product safety. Once operated there is less than 1% residual magnetism.
- The simple switch and safety button design allows for one handed operation.
- Use of plate with high-carbon content will reduce the absorbability to less than 50% of rated capacity. Use of plate with high carbon content is not recommended.
| MODEL | PML-1 | PML-3 | PML-6 | PML-10 | PML-20 | PML-30 | PML-60 |
|---|---|---|---|---|---|---|---|
| Stock Code | MAG010 | MAG030 | MAG060 | MAG100 | MAG200 | MAG300 | MAG600 |
| Rated Capacity (kg) | 100 | 300 | 600 | 1000 | 2000 | 3000 | 6000 |
| Cylindrical Carrying Capacity (kg) | 50 | 150 | 300 | 500 | 800 | 1200 | 1800 |
| Max. Break-away Force (kg) | 350 | 1050 | 2100 | 3500 | 7000 | 10500 | 21000 |
| Net Weight (kg) | 3 | 10 | 24 | 50 | 125 | 240 | 440 |
