​Galvanised Wire Rope

Table of Working Load Limits for Standard Galvanised Slings
With Ferrule Secured Eyes Only

6x24 Fibre Core Grade 1570 RHOL LUB. A-2 Galvanised Wire Rope

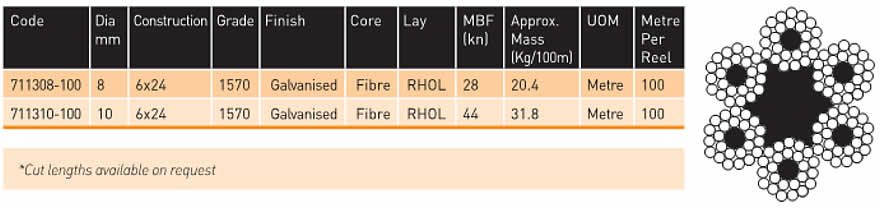

6x24 F/C G1570. RHOL LUB. A-2 Galvanised Wire Rope - Pre Made 100 mtr Reels

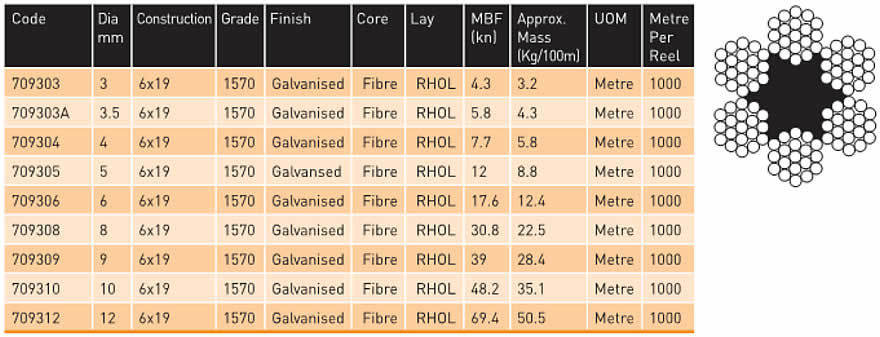

6x19 F/C G1570. RHOL DRY LUB. Galvanised Wire Rope

6x19 F/C G1570. RHOL DRY LUB. Galvanised Wire Rope - Pre Made 50 & 100 mtr Reels

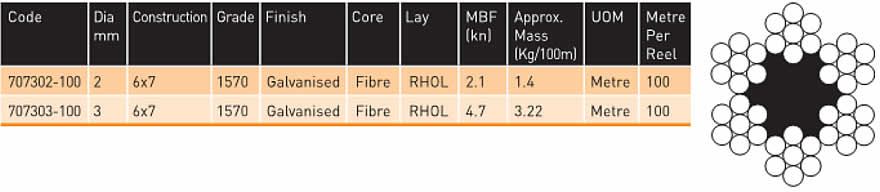

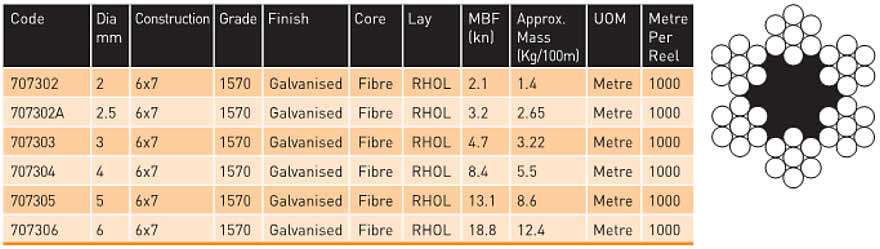

6x7 F/C G1570. RHOL DRY LUB. Galvanised Wire Rope

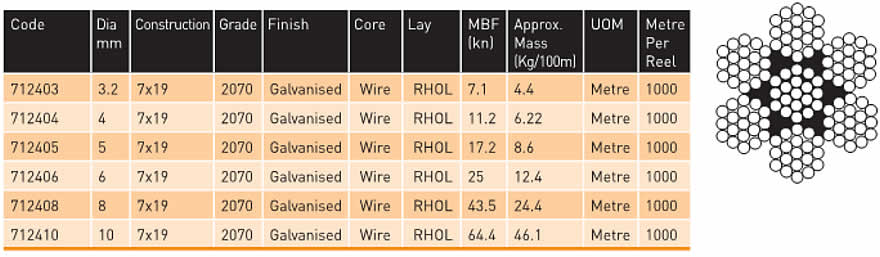

7x19 G2070 RHOL LUB. DRY Galvanised Wire Rope

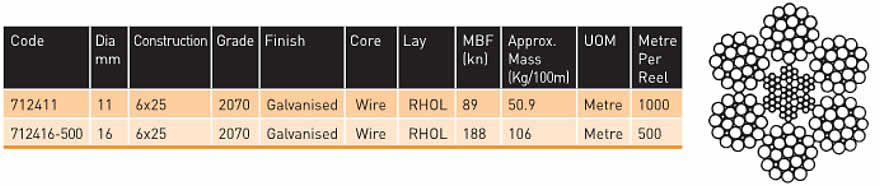

6x25 G2070 TIRFOR ROPE Galvanised Wire Rope

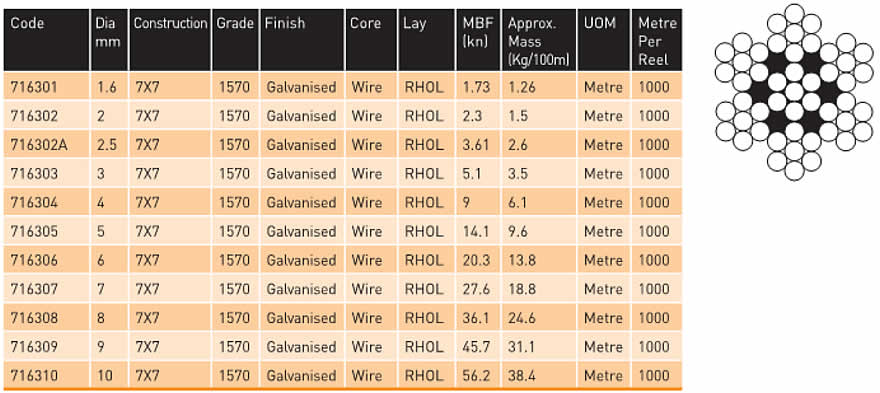

7x7 G1570 WRC RHOL DRY Galvanised Wire Rope

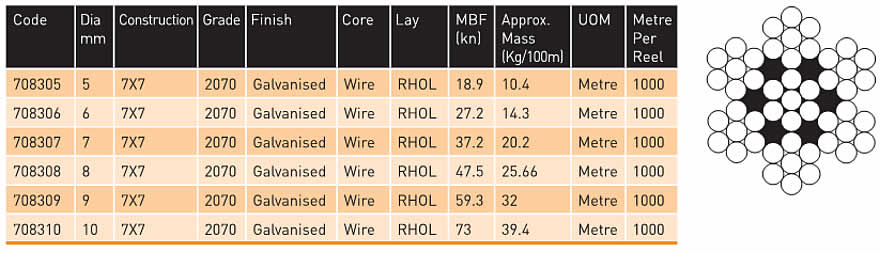

7x7 G2070 WRC RHOL DRY Galvanised Wire Rope

7x7 G2070 WRC RHOL DRY Galvanised Wire Rope - 3000 Metre Rolls

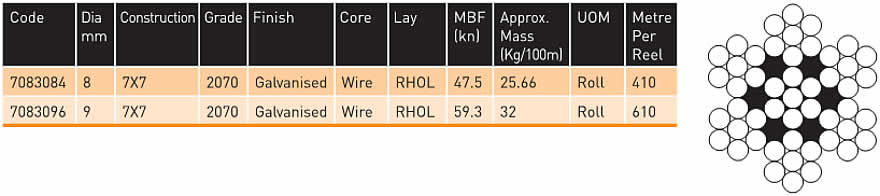

​7x7 G2070 WRC RHOL DRY Galvanised Wire Rope c/w Swaged Thimble Eye on Inside of Reel

6x36 G1770 IWRC Galvanised Wire Rope

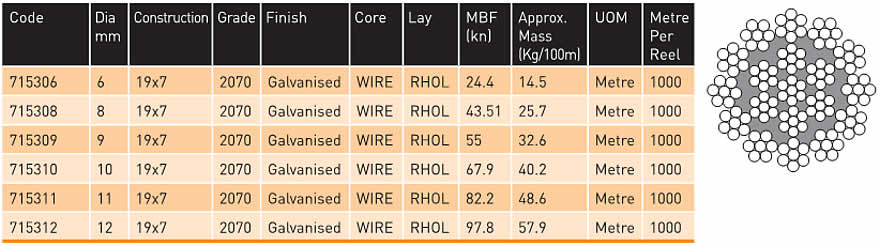

19x7 G2070 Non-Rotating Galvanised Wire Rope

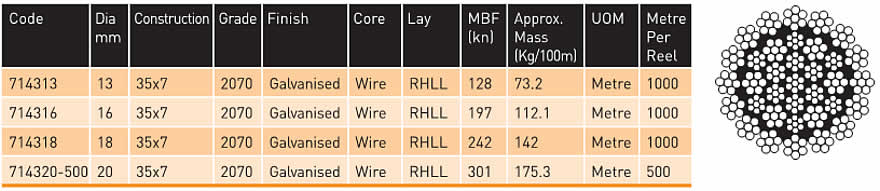

35x7 G2070 Non-Rotating Galvanised Wire Rope

Galvanised Winch Rope 6 x 19S + IWRC RHOL

Austlift 6x19s & 6x25fi Steel Core Wire Rope have a high strength characteristic and suitable for Wire Rope Hoist or winching purposes uses wherever high capacity rope is required for the application.
​
  • Sizes available are 8.3mm, 11.4mm and 16.4mm
  • Galvanized finish, standard grade of 2070 available.
  • Supplied reel lengths available are 500 metres and 1,000 metres.
  • Conforms to AS3569, Test Certificate available with each reel batch.
  • See table below
6 x 25Fi + IWRC RHOL Galvanised Winch Rope
  Dia Construction MBS Mass
Code mm   2070 MPa kN kg / 100 mtrs
821085 8.3 6 X 19S RHOL WRC 47 24.4
825110 11.4 6 X 25FW RHOL WRC 89 50.6
825165 16.4 6 X 25FW RHOL WRC 188 107
Strand 1x19 Galvanised Wire Rope
​
Austlift 1x19 Galvanized Strand Class A Wire Ropes have a Non-flexible characteristic and suitable for guy wires, architectural rigging, support ropes or uses wherever non-flexible rope is required for the application.
​
  • Sizes from 8mm to 20mm with standard grade G1570 available.
  • Class A Galvanized finish for optimum corrosion resistance.
  • Supplied reel lengths available are 500 metres and 1,000 metres.
  • Conforms to AS 2841, Test Certificate available with each reel.
  Dia MBS Mass
Code mm 1570 MPa kg / 100 mtrs
891080 8 56.3 32.2
891100 10 88 50.4
891120* 12 126 72.6
891140 14 172 98.8
891165* 16 210 129
891185* 18 265 163
891205* 20 368 212
18x7 FC Galvanised Wire Rope

Austlift 18x7 non-rotating Wire Ropes have a non-spin characteristic suitable for lifting rope on cranes.
​
  • Sizes available from 6mm to 19mm with standard grade of 2070.
  • Black and Galvanized finish.
  • Supplied reel lengths available are 500 metres and 1,000 metres.
  • Conforms to AS3569, Test Certificate available with each reel batch.
Code Dia MBS Mass
500 mtrs mm 2070kN kg / 100 mtrs
887065 6 23.7 13.8
887085 8 42.1 24.5
887095 9 53.4 31
887105 10 66.1 38.3
887115 11 79.8 46.3
887125 12 95 55.1
887135 13 111 64.7
887145 14 130 75
887165 16 168 98
35Wx7 WSC Wire Rope

Austlift 35x7 non-rotating Wire Ropes have a Non-spin characteristic suitable for lifting rope on cranes.
​
  • Sizes available from 12mm to 24mm with standard grade of 2070
  • Black and Galvanized finish
  • Supplied reel lengths available are 500 metres and 1,000 metres
  • Conforms to AS3569
  • Test Certificate available with each reel batch.
Code Dia MBS Mass
500 mtrs mm 2070kN kg / 100 mtrs
888125 12 93.1 56.2
888135 13 109.2 65.9
888145 14 129.6 78.7
888165 16 169.2 102.8
888185 18 240 129.7
888195 19 239.3 144.9
888205 20 265.2 160.6
888225 22 320.4 194.5
888245 24 381.6 231.6
