Stackers/Forks

Stackers

SFHD10 Hand Straddle Stacker

Straddles the Pallet

Features Specifications
Capacity 1000kg
Leg Width 1200mm
Fork Height Range 85 - 1600mm
Fork Size 150/160 x 60mm
Fork Overall Width 300 - 740mm
Fork Length 900mm
Mast Height Minimum 1980mm

3W219 Standard Steel Platform Lifter

Industrial Quality Equipment used across many industries.
Designed and Manufactured to meet the highest demand applications industries have to offer.
Hydraulic Hand Stacker with Steel Standard Platform

Features Specifications
Capacity 340kg
Lift Range 10 - 1350mm
Platform Size 560 x 560mm
Wheels 2
Overall Height 1545mm
L x W x H 880 x 570 x 1545mm

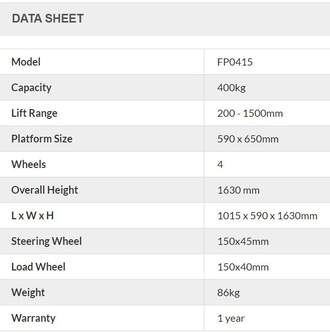

FP0415 Platform Stacker

Industrial Quality Equipment used across many industries.
Designed and Manufactured to meet the highest demand applications industries have to offer.

Features Specifications
Capacity 400kg
Lift Range 200 - 1500mm
Platform Size 590 x 650mm
Wheels 4
Overall Height 1630mm
L x W x H 1015 x 590 x 1630mm

SFH10 Hand Stacker

Industrial Quality Equipment used across many industries.
Designed and Manufactured to meet the highest demand applications industries have to offer.

Features Specifications
Capacity 1000kg
Fork Height Range 85 - 2500mm
Fork Size 150/160 x 60mm
Fork Overall Width 300 - 740mm
Fork Length 900mm
Mast Height Minimum 1830mm
Weight 300kg

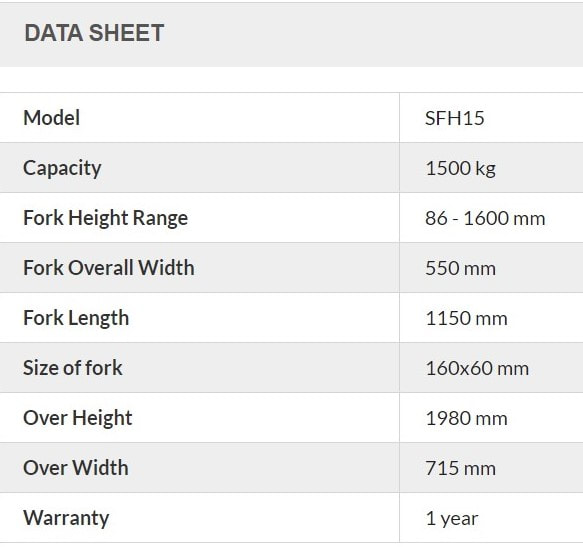

SFH15 Hand Stacker

Industrial Quality Equipment used across many industries.
Designed and Manufactured to meet the highest demand applications industries have to offer.

Features Specifications
Capacity 1500kg
Fork Height Range 85 - 1600mm
Fork Size 150/160 x 60mm
Fork Overall Width 300 - 740mm
Fork Length 900mm
Mast Height Minimum 1980mm
Weight 260kg

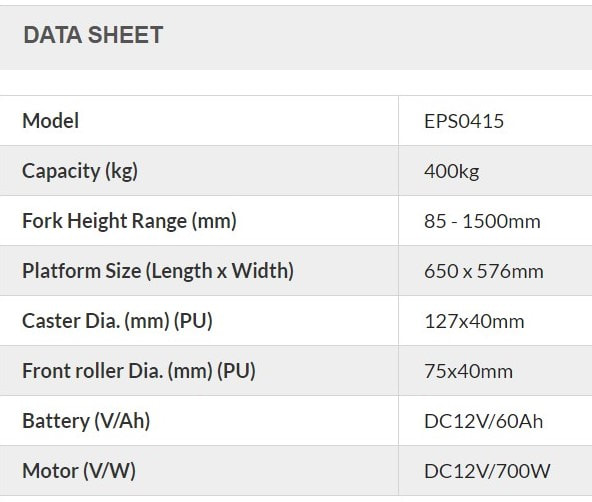

EPS0415 Electric Platform Stacker

Electric lift operated

Manually pushed
Special design combines lifting, transporting and stacking function together

Features Specifications
Capacity 400kg
Fork Height Range 85 - 1500mm
Platform Size (L x W) 650 x 576mm
Battery DC12V 60AH
Motor DC12V 700W

SPN15A Semi - Electric Straddle Leg Stacker

Manual Push, Electric Lift

Features Specifications
Capacity 1500kg
Fork Height Range 55 - 2500mm
Fork Overall Width 1360mm
Fork Length 1150mm
Battery 12V/120Ah
Motor 1.6Kw
Weight 470kg

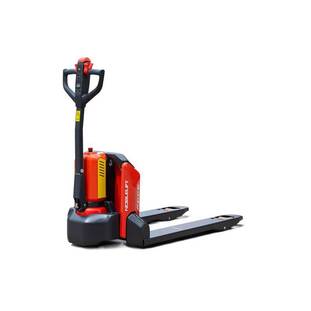

SPN15A Electric Powered Pallet Truck

German drive
European hydraulic motor
Rechargeable battery

Features Specifications
Capacity 1500kg
Lifting Height 120mm
Minimum Height 85mm
Fork Overall Width 700mm
Fork Length 1150mm
Battery 24V
Motor 700W
Weight 286kg

CS1233U Power Straddle Stacker

German 24 volt AC motor and retarder ensures smooth driving motion.
American Curtis controls
Italian Curtis controls
Italian LSKRA hydraulic systems

Features Specifications
Capacity 1200kg
Liftting Height 3150mm
Fork Overall Width 1580mm
Fork Length 1150mm
Battery 12V/210Ah
Motor 2.2Kw
Weight 995kg

MES150 Lifter Transporter

Ideal for Laboratory or Office use, light industrial
Rechargable Battery

Features Specifications
Capacity 150kg
Liftting Height 1420mm
Fork Overall Width 520mm
Fork Length 460mm
Battery 12V/7Ah
Motor 12V
Weight 58kg

4W477 Hand Stacker

Features Specifications
Capacity 500kg
Fork Height Range 50 - 1930mm
Fork Size 25 x 76mm
Fork Overall Width 620mm
Fork Length 760mm
Dimensions 1180 x 810 x 2350mm

WFH181 Hand Stacker

Lightweight stacker

Great for tradespeople!
Folds and loads easily into a ute or station wagon
Compact design allows you to lift and manouver in tight work areas

Features Specifications
Capacity 181kg
Fork Height Range 90 - 2500mm
Fork Overall Width 630mm
Fork Length 570mm
Dimensions 850 x 650 x 2500mm
Weight 60kg

STD60 Hand Trolley

Weighs just 20kg

Lifts to 1250mm
Ideal for utes, vans, station wagons and sedans

Features Specifications
Capacity 60kg
Lifting Height 1250mm
Platform Size (L x W) 330 x 380mm
Fork Length 310mm
Dimensions 555 x 500 x 940mm
Weight 20kg

HSM200 Lightweight Lifter

Manual models: Operated via a manual hand winch
Auto brake system prevents uncontrolled lowereing
Quick change attachement options available
Conforms to EN1757, CE marked.

Features Specifications
Capacity 200kg
Load Centre 235mm
Fork Height Range 130 x 1500mm
Platform Size 470 x 600mm
Overall Size 870 x 600 x 1920
Load Wheel Diamter 75mm
Steering Wheel 125mm
Weight 60kg

HS120 Lightweight Lifter

Lightweight design, very easy to operate by hand winch.
Suitable for super market, office, werehouse, narrow area etc...
Adjustable fork
Attachment options

Features Specifications
Capacity 120kg
Fork Height Range 95 - 1050mm
Fork Length 400mm
Fork Indivuidual Width 50mm
Fork Width Adjustable 345 - 485mm
Load Wheel 50mm
Steering Wheel 200mm
Weight 31kg

NFM60 Hydraulic Furniture Mover

For professional transport of heavy items

Capacity   600kg
Lift Height   300mm
Wheels   145mm

NFM180 Hydraulic Furniture Mover

For professional transport of heavy items

Capacity 1800kg
Lift Height 250m
Wheels 145mm

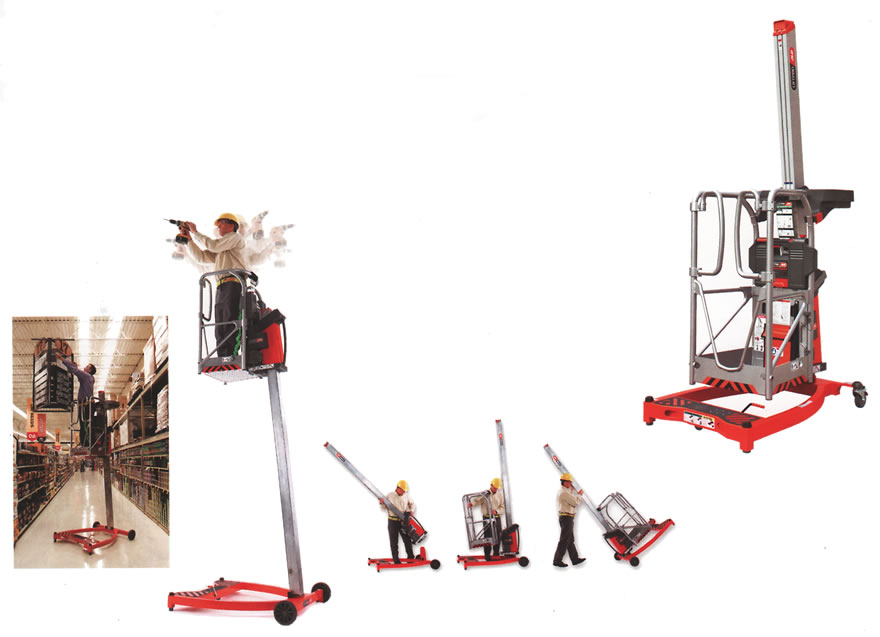

FS60 Lift Pod Aerial Work Platform

Discover a More Productive Way to Work
Whatever the job, safety in the workplace is vital.
The LiftPod aerial work platform by JLG offers a secure, enclosed basket
and the ability to work 360 degrees with both hands.
All up to 14-foot working height.
Bring productivity up and help keep safety costs down.

Can be assembled in less than 30 seconds.
Raise & Lower the work platform with a cordless 18V drill or optional Power Pack Kit
Secure, comfortable work platform with standard work tray for tools and materials.
A quarter the cost of traditional work platforms.

Features FS60 FS80
Platform Height 1720mm 2320mm
Working Height 3720mm 4320mm
Stowed Height 2350mm 2970mm
Platform Capacity 150kg 150kg
Total Weight 59.1kg 63kg
Base Width 760mm 1040mm
Accessory Tray Holds up to 15kg Holds up to 15kg
Tyre Material Polyurethane Polyurethane
Batteries 2 x 28V NiMH Packs 2 x 28V NiMH Packs
Battery Charger 2hr Fast Charge 2hr Fast Charge
