Strapping Machines
Strapping Machines
File Size: 539 kb
File Type: pdf
Download File
TMS300 Strapping Machine
  • Easy operation
  • Simple Maintenance
  • Suit PP Strap width 6-16mm
  • Three models available
  • Affordable cost efficient wrapper

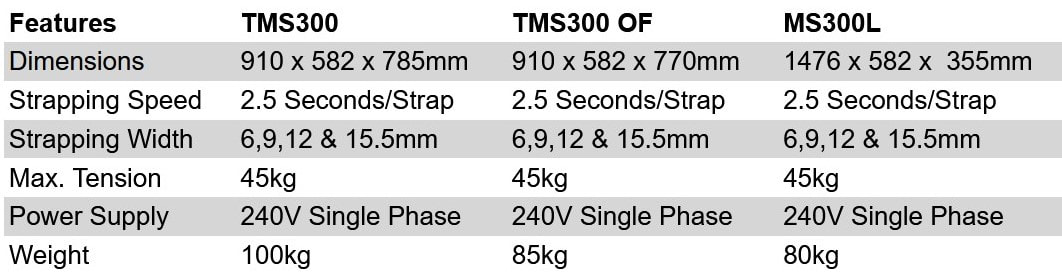

Features TMS300 TMS300 OF MS300L
Dimensions 910 x 582 x 785mm 910 x 582 x 770mm 1476 x 582 x  355mm
Strapping Speed 2.5 Seconds/Strap 2.5 Seconds/Strap 2.5 Seconds/Strap
Strapping Width 6,9,12 & 15.5mm 6,9,12 & 15.5mm 6,9,12 & 15.5mm
Max. Tension 45kg 45kg 45kg
Power Supply 240V Single Phase 240V Single Phase 240V Single Phase
Weight 100kg 85kg 80kg
TRS600 Strapping Machine
​
  • Reliable & Easy to Operate
  • Simple Maintenance
  • Simple to Load Strap
  • Suit PP Strap width 8-15mm
  • Mechanical Tension Control

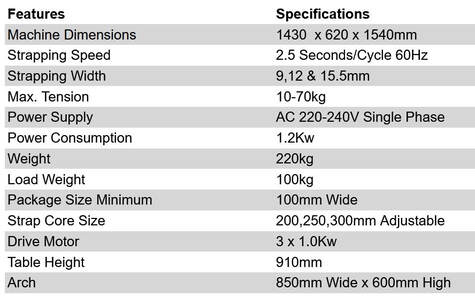

Features Specifications
Machine Dimensions 1430  x 620 x 1540mm
Strapping Speed 2.5 Seconds/Cycle 60Hz
Strapping Width 9,12 & 15.5mm
Max. Tension 10-70kg
Power Supply AC 220-240V Single Phase
Power Consumption 1.2Kw
Weight 220kg
Load Weight 100kg
Package Size Minimum 100mm Wide
Strap Core Size 200,250,300mm Adjustable
Drive Motor 3 x 1.0Kw
Table Height 910mm
Arch 850mm Wide x 600mm High
